WHIRLING OF SHAFTS AND CRITICAL SPEED

A compact bench top mounting experiment to demonstrate the phenomena of whirling shafts.

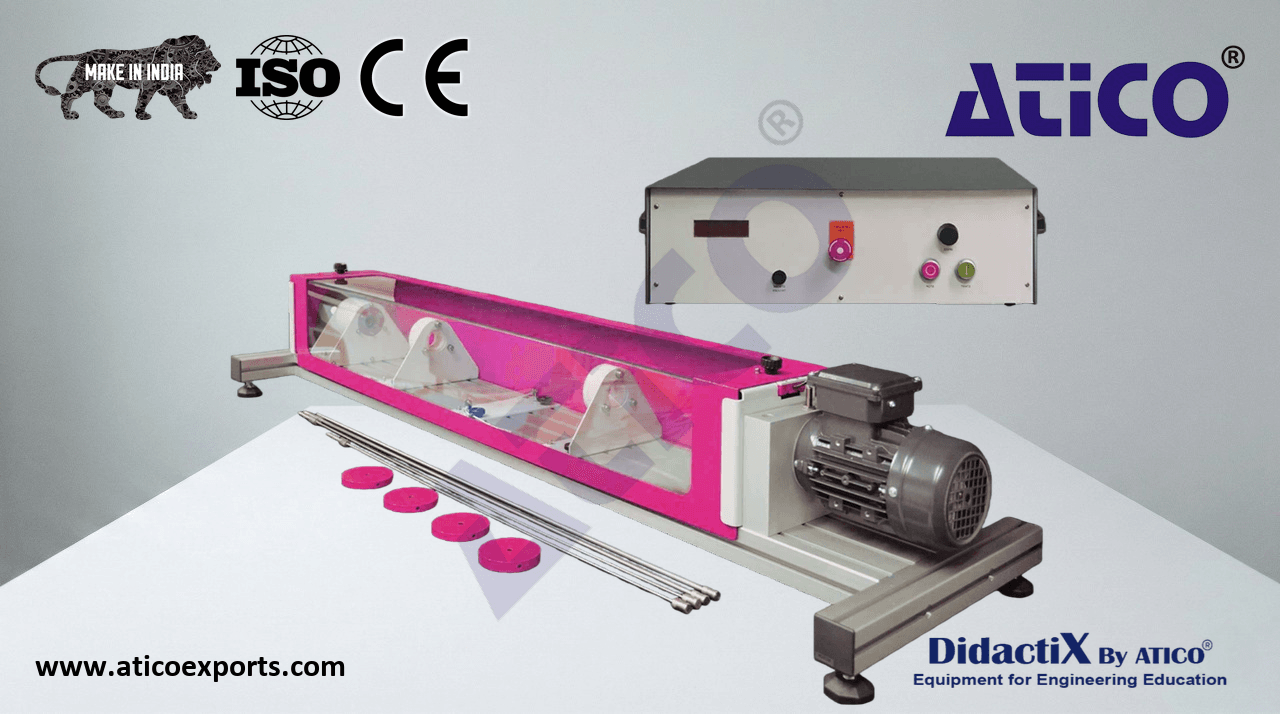

The Whirling of Shafts and Critical Speed apparatus shows how shafts vibrate transversely and 'whirl' at a certain rotation frequency. This helps engineers understand possible problems with long shafts and allow for them in their designs. The equipment is in two parts and fits on a bench or desktop. Learn about WHIRLING OF SHAFTS AND CRITICAL SPEED for educational labs for optimal educational outcomes.. The main part is a solid alloy frame that holds a variable speed motor which turns the horizontal test shaft. Two bearings hold the shaft, one bearing at the 'driven end' and the other bearing at the 'tail end' of the shaft. Learn about WHIRLING OF SHAFTS AND CRITICAL SPEED equipment for optimal educational outcomes.. The tail end bearing slides in its housing to allow the shaft length to change as it 'whirls'. Similar to a beam on two simple knife-edge supports, both bearings allow free angular shaft movement (free ends condition). Learn about WHIRLING OF SHAFTS AND CRITICAL SPEED theory-of-machines India for optimal educational outcomes.. Also supplied with the equipment are extra bearings that restrict angular movement when fitted, to give 'fixed ends'.
