WHEEL AND DIFFERENTIAL AXLE

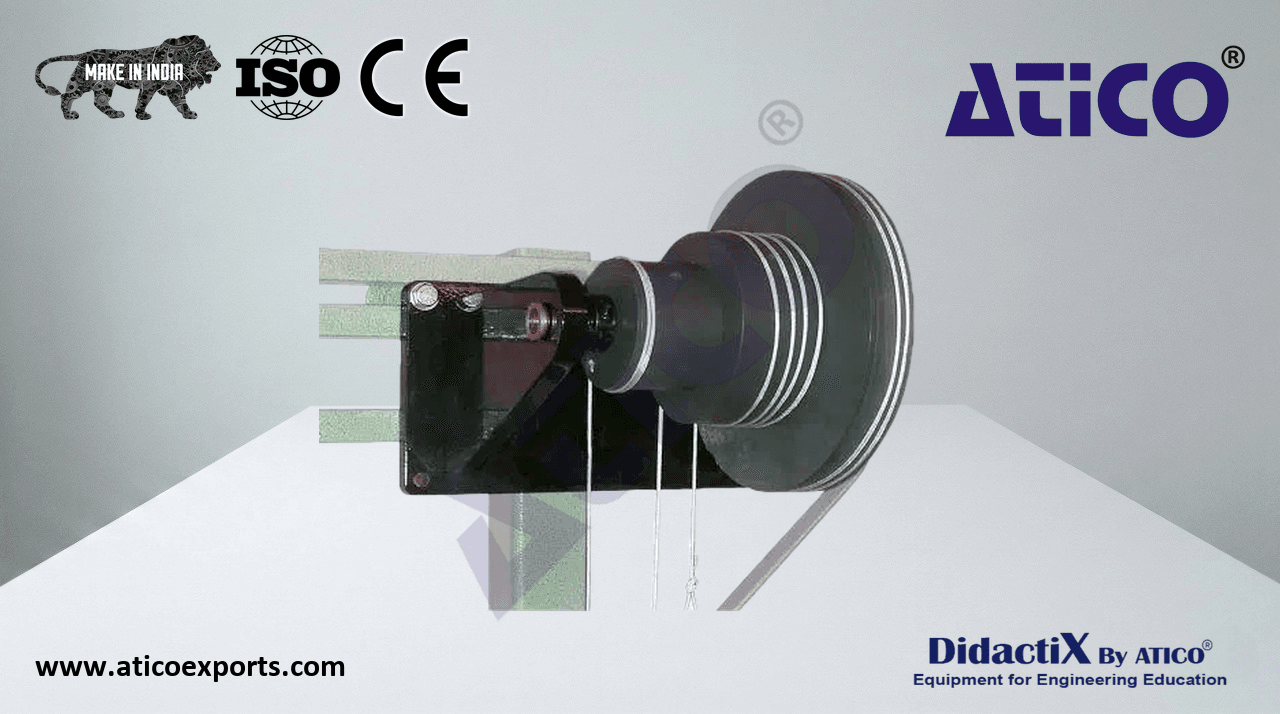

A wheel attached to a differential axle assembly comprising a major axle (??114 mm) and minor axle (??38 mm), secured to a shaft in bearings within a sturdy wall mounting bracket. Three pulleys are fixed together to form a compound pulley. A single cord attaches to the wheel and hangs vertically to a load hanger. Learn about WHEEL AND DIFFERENTIAL AXLE for educational labs for optimal educational outcomes.. A second cord is wrapped in differing directions onto each axle, with a special effort hanger allowing vertical suspension while the axles rotate. Investigates velocity ratio and mechanical advantage. Learn about WHEEL AND DIFFERENTIAL AXLE theory-machines India for optimal educational outcomes..

• Wheel diameter: 170 mm
• Major axle diameter: 100 mm
• Minor axle diameter: 67 mm
• Velocity ratio: 10.5 : 1
• Maximum recommended load: 50 N
• Weights set: 4 × 0.1 N, 3 × 0.2 N, 1 × 1 N, 2 × 2 N, 2 × 5 N, 1 × 10 N, 2 × 20 N
