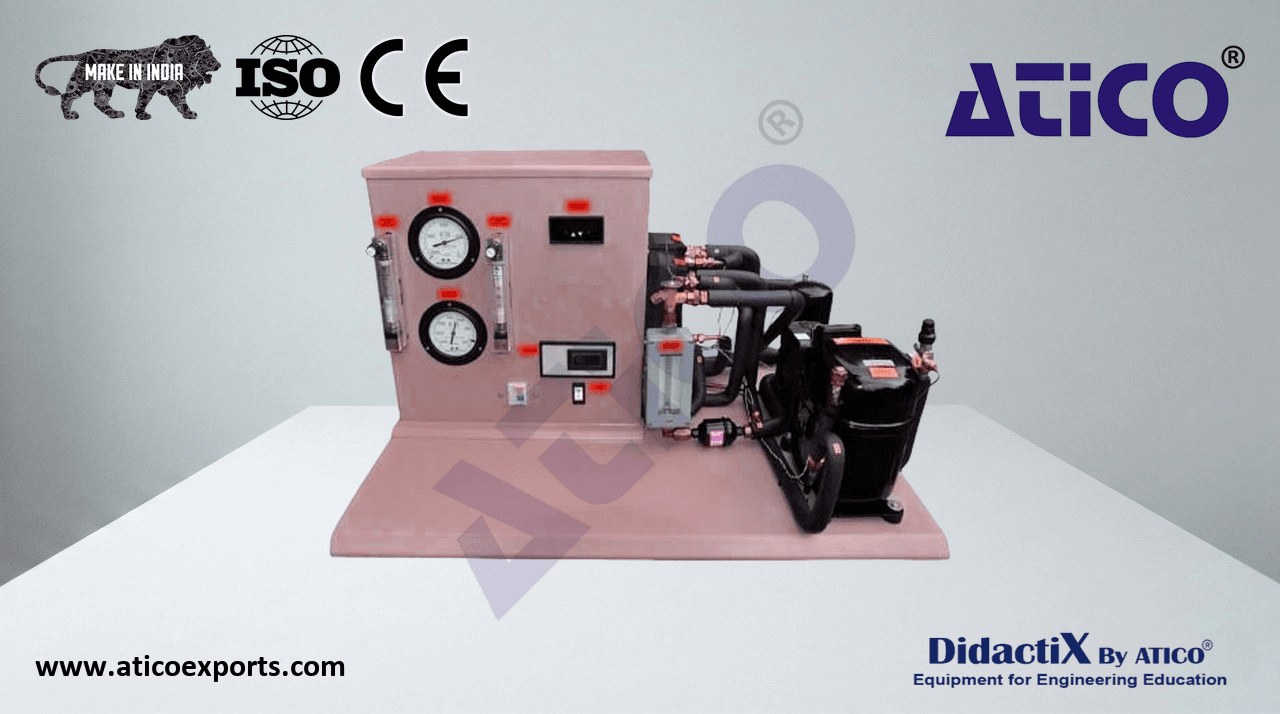

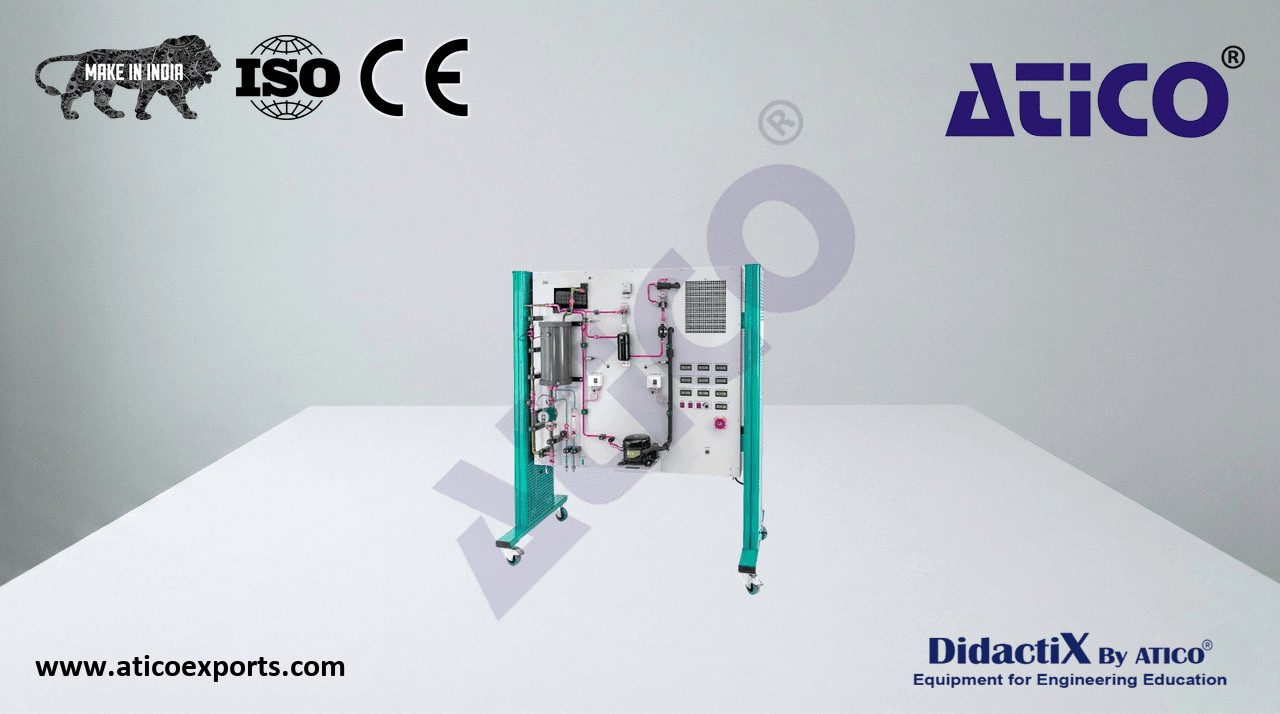

WATER TO WATER HEAT PUMP Deluxe

A heat pump is a machine whose prime function is to absorb heat from a low-grade source and deliver it at a useful temperature — for example, suitable for space heating or domestic hot water. This unit has been designed specifically to allow students to obtain an overall understanding and appreciation of the performance and characteristics of a heat pump working on the vapour compression cycle with an electrically driven compressor. The low-grade heat source is water, which may be obtained from the local water supply. Learn about WATER TO WATER HEAT PUMP refrigeration India for optimal educational outcomes.. Alternatively, an optional Ground Source Simulator is available, providing a recirculated glycol/water source with a large container that may be filled with locally sourced soil, sand, or water to simulate a static heat source. Heat delivered by the unit is in the form of water at up to 55°C, depending upon the water source temperature. Learn about WATER TO WATER HEAT PUMP specifications for optimal educational outcomes.. The work input is in the form of electrical energy supplied to a hermetically sealed compressor.

Construction:

• Refrigerant: R134a (HFC134a)
• Panel: High quality ABS
• Compressor: Fully hermetic single cylinder reciprocating type; displacement 18.5 cm³ rev⁻¹
• Condenser: Refrigerant-to-water insulated plate heat exchanger
• Liquid receiver: With valves; contains entire refrigerant charge if required
• Evaporator: Water-to-refrigerant efficient plate heat exchanger

Instrumentation:

• Digital thermometer: 0.1°C resolution, with switch to select from six thermocouples
• Flow meters × 3: Variable area type — for R134a and water flow rates
• Pressure gauges × 2: To indicate R134a pressures in evaporator and condenser
• Electrical energy meter: Direct reading digital wattmeter

Safety Features:

• Condenser high pressure switch and compressor thermal overload switch
• Residual current circuit breaker
• Combined double pole main switch and overload cut-out
• All electrical components connected to common earth conductor
