WATER CHILLER TRAINER
Need Help?
+91 98967 93832Applications

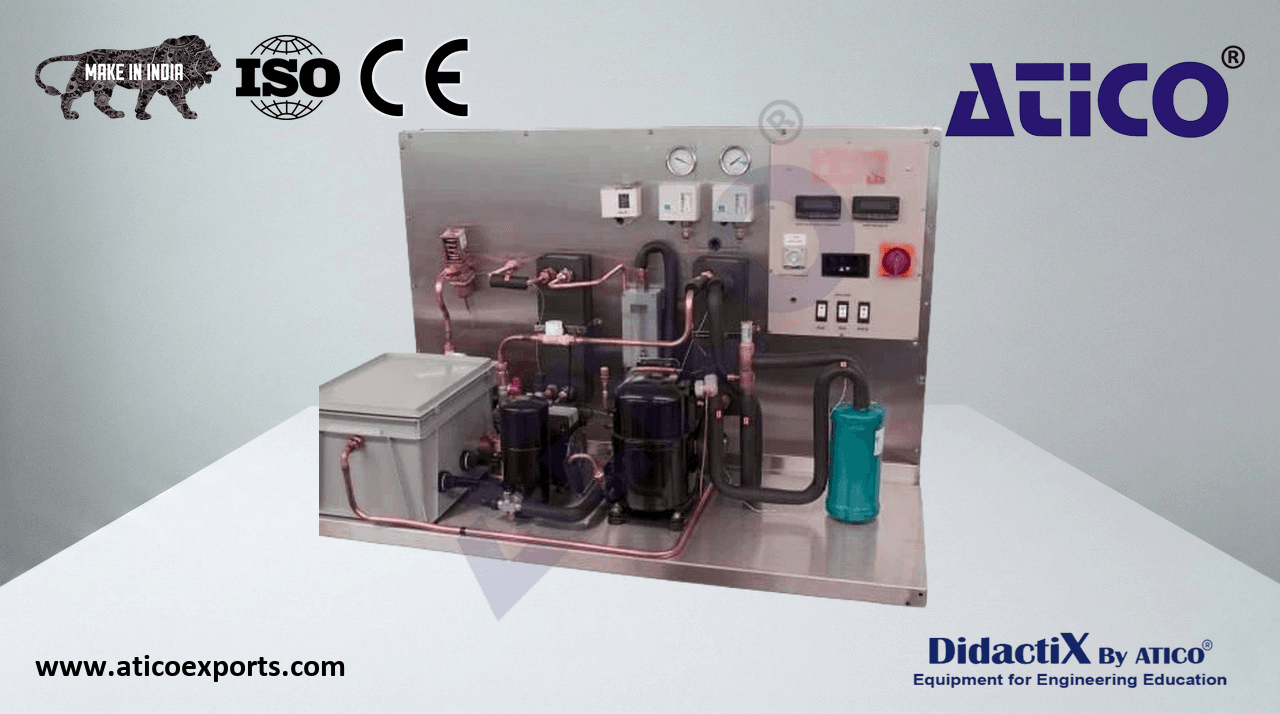

A fully operational water chiller training unit enabling students to adjust and investigate a typical water cooler operating under load, either with or without evaporator pressure regulation. The cooling of pure water requires that the evaporator surface temperature does not fall below 0??C, or the system will freeze. This unit allows students to safely explore the parameters affecting evaporating pressure without danger to the operator or equipment. Learn about WATER CHILLER TRAINER vocational-training India for optimal educational outcomes.. Mounted on a steel frame with stainless steel panels, the unit comprises a hermetic compressor with water-cooled condenser, liquid receiver, water-cooling evaporator with adjustable pressure regulator. A pump circulates the cooled water at an adjustable flow rate through a tank with individually switched heaters that load the refrigeration system. Learn about WATER CHILLER TRAINER manufacturers for optimal educational outcomes.. All controls and high/low-pressure switches are adjustable by the student to enable advanced studies in vapour compression refrigeration control.
Technical Specifications
- Hermetic compressor
- Water-cooled condenser
- Liquid receiver
- Adjustable condenser pressure regulator
- Water-cooling evaporator
- Thermostatic expansion valve
- Adjustable evaporator pressure regulator with detachable service gauge
- Suction accumulator
- Water tank with individually switchable loads: 1 kW, 1 kW and 0.5 kW
- Water circulating pump with flow control
Instrumentation:
- Digital temperature indicator with 10-way selector switch
- Condenser and evaporator water flow meters
- Condenser and suction pressure gauges; detachable evaporator pressure gauge
- Optional refrigerant flow meter
Control panel:
- Overload protection, contactor, earth leakage protector
- Optional computerised data acquisition system
