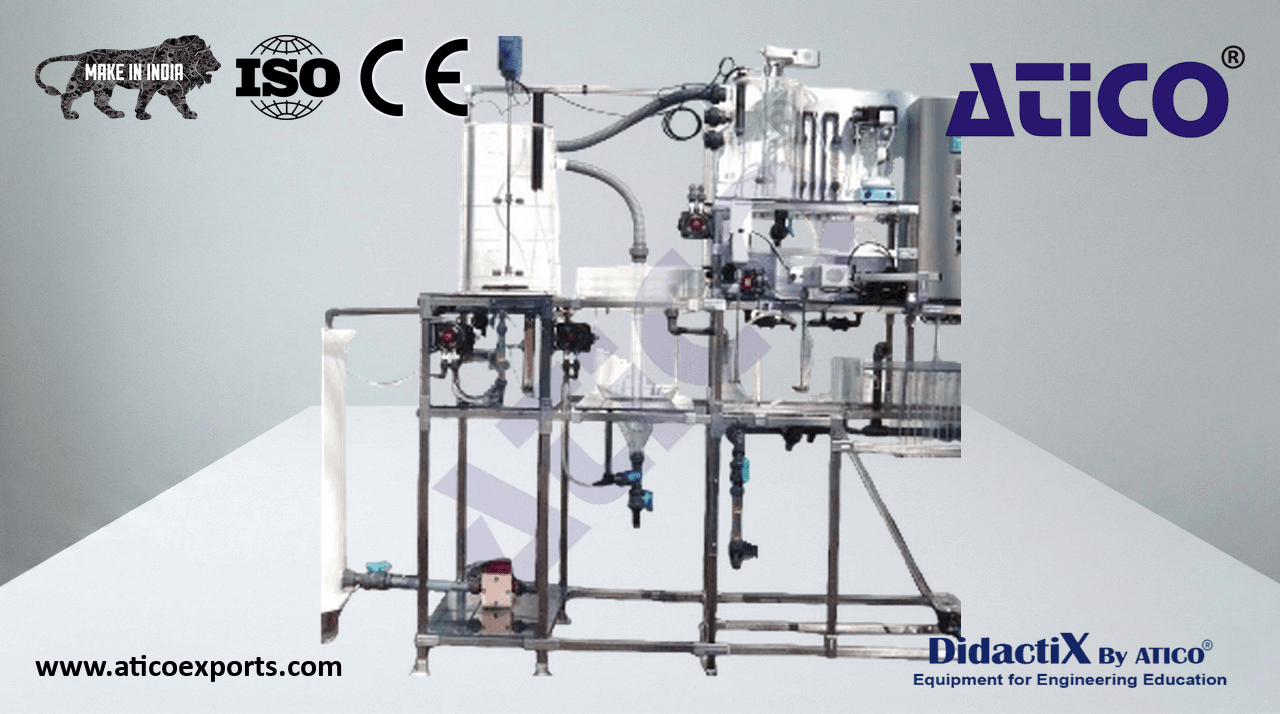

Wastewater Treatment Pilot

This pilot allows the study of the processes used in an activated sludge wastewater treatment plant. Educational Objectives: Understand the phenomena of degradation of chemical and organic pollutants by the action of micro-organisms in aerobic medium, followed by physico-chemical treatment. Operation of a plant based on daily sampling and analyses. Learn about Wastewater Treatment Pilot specifications for optimal educational outcomes.. Characterization of nitrification, denitrification, and dephosphatation stages.

This pilot presents the process for eliminating carbonaceous, nitrogenous, and phosphorous pollution by microbiological means. It operates by contacting the water to be treated with a bacterial floc in the presence of O₂, followed by a floc separation phase.

A feed tank Stirring system in the feed tank (circulator and level sensor) A transparent acrylic aeration basin with two overflow levels A variable-speed stirrer with electronic drive and speed display on the aeration basin A compressor regulated by oxygen level measurement A gas float-type flow meter A dissolved oxygen measurement probe and transmitter with 4-20 mA output A combined pH/Redox measurement probe and transmitter with 4-20 mA output (includes temperature measurement) A peristaltic pump on sequencer for substrate feed Sludge recycling by peristaltic pump on sequencer A float-type flow meter for substrate A transparent acrylic clarifier basin A control cabinet and its instrumentation; pilot in PVC and transparent acrylic on stainless steel chassis with aluminum clamping nuts An anoxia basin with lid, variable-speed stirrer, and probe supports A dosing pump for base solution regulated by pH measurement A peristaltic pump for mixed liquor recycling A physico-chemical dephosphatation unit with lamellar settler comprising 3 compartments: transparent acrylic flocculator-settler with inclinable and retractable lamellar plates, 2 small reagent tanks (coagulant and flocculant) with 2 peristaltic dosing pumps on sequencer, 2 variable-speed stirrers with speed display
