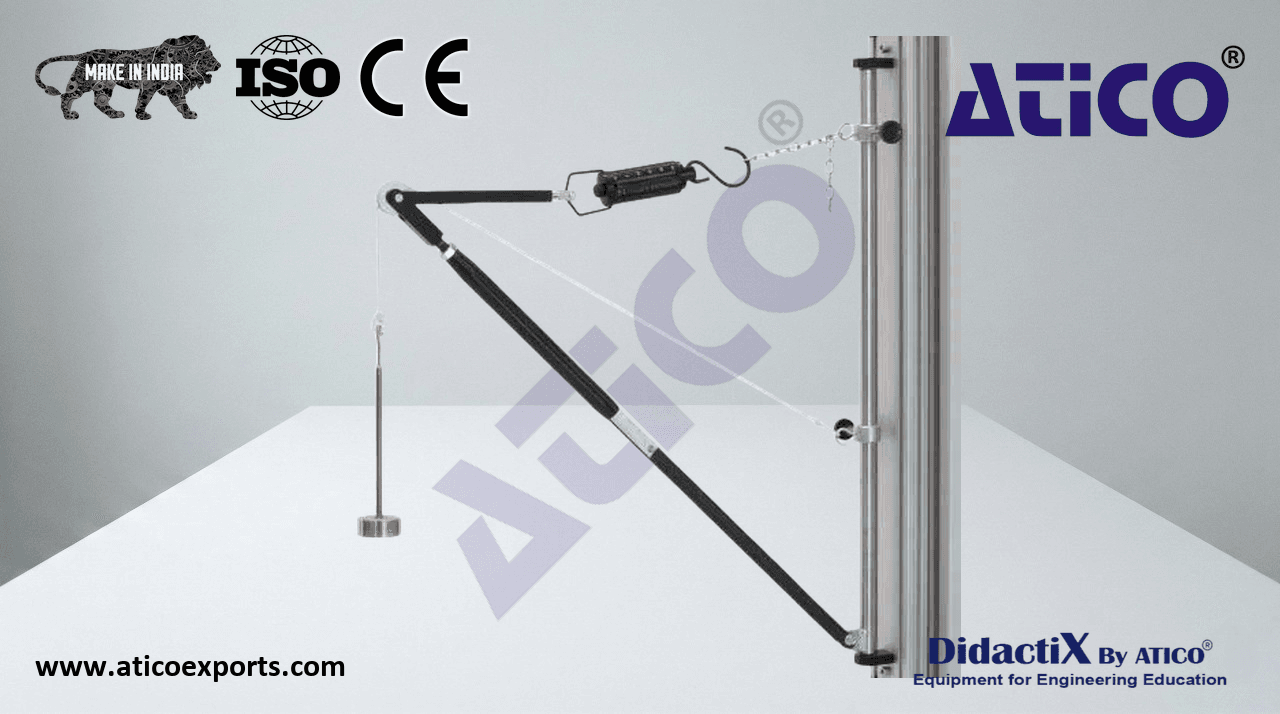

WALL JIB CRANE
Category: Engineering Mechanics Lab Trainers
Need Help?
+91 98967 93832Technical Specifications
- Maximum vertical distance between wall pivots: approximately 350mm
- Tensile Member length: 500mm (approx.)
- Compressive Member length: 400mm (approx.)
- Tensile force spring balance: 6kgf in 0.1kgf increments
- Compressive force spring balance: 60N in 2N increments
- Weights set: 3 x 5N
- 1 x Load hanger
