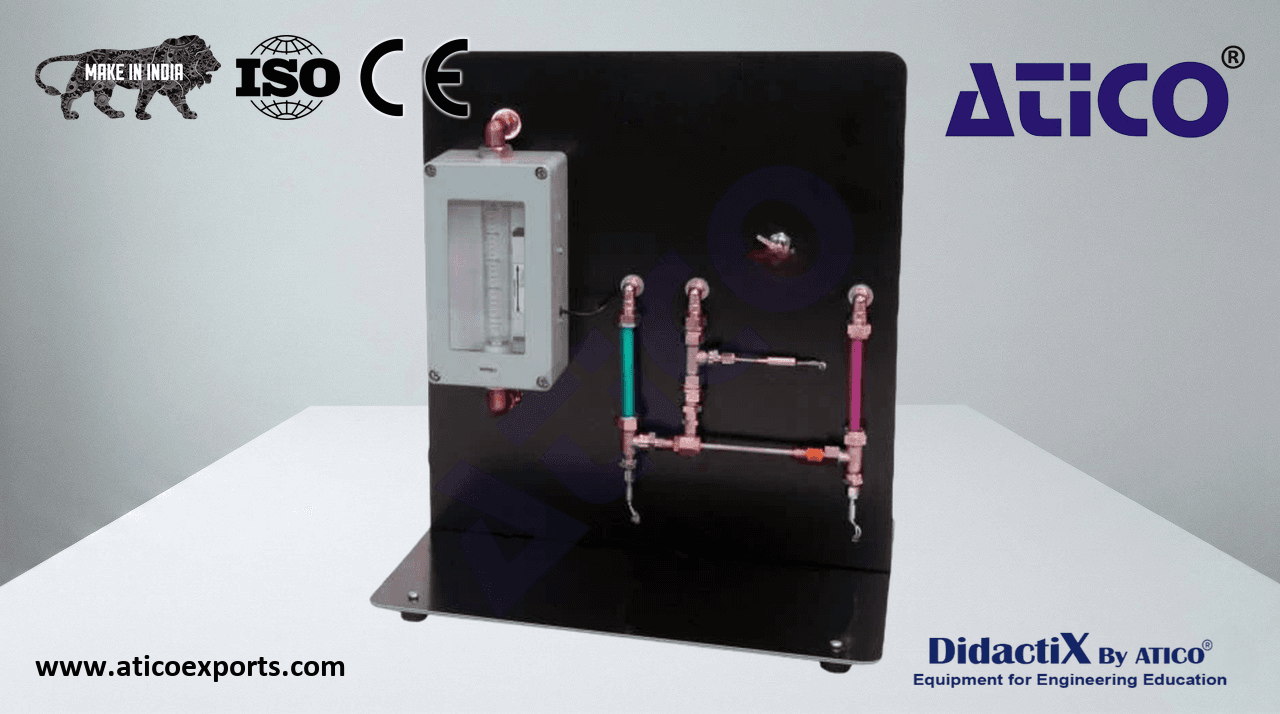

VORTEX TUBE REFRIGERATOR MODULE

A compressed air vortex tube has two outlet ports that can be adjusted to vary the proportion of flow that leaves from the hot and cold exit points. Using a common compressed air source at ambient temperature, the cold stream can reach temperatures below -30??C and the hot stream temperatures above 50??C. The effect of air supply pressure on the performance can be investigated together with the overall refrigerating effect. Learn about VORTEX TUBE REFRIGERATOR MODULE compressible-fluid-flow India for optimal educational outcomes.. The pressures, temperatures and air flow rate are recorded by a combination of instrumentation on the base unit and the optional module.

• 3 x Thermocouples
• Cold Stream: -30°C
• Hot Stream: +50°C
