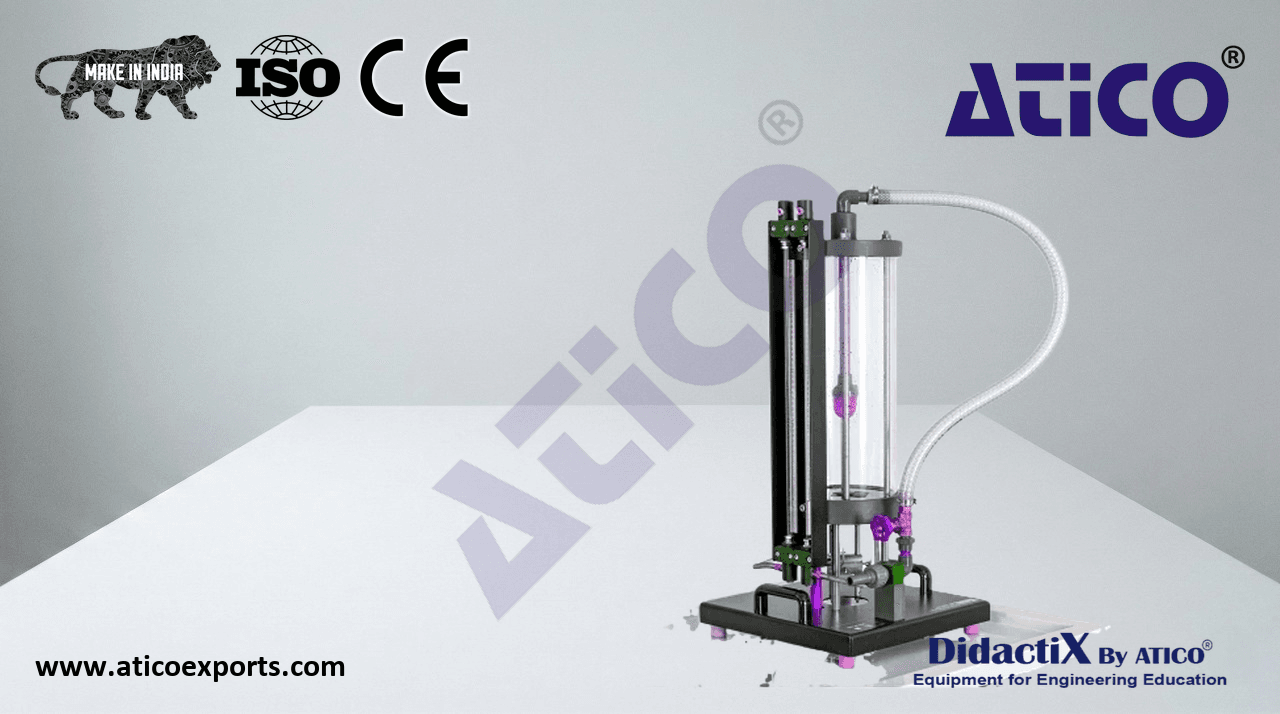

Vertical flow from a tank Deluxe

Pressure losses in the flow from tanks are essentially the result of two processes: the jet deflection upon entry into the opening and the wall friction in the opening. As a result of the pressure losses the real discharge is smaller than the theoretical flow rate.

• study of pressure losses in vertical flows from tanks
• determining the discharge coefficient for different contours and diameters
• tank with overflow
• inlet with gate valve
• 5 interchangeable inserts with different contours
• measuring device for determining the jet diameter
• Pitot tube for determining the total pressure
• pressure display on twin tube manometers
• flow rate determined by base module
• water supply using the base module or via laboratory supply
• flow visualisation using prepared CFD simulations
• digital multimedia teaching material available online: e-learning course, prepared CFD simulations, worksheets, videos
