VENTILATION TRAINER

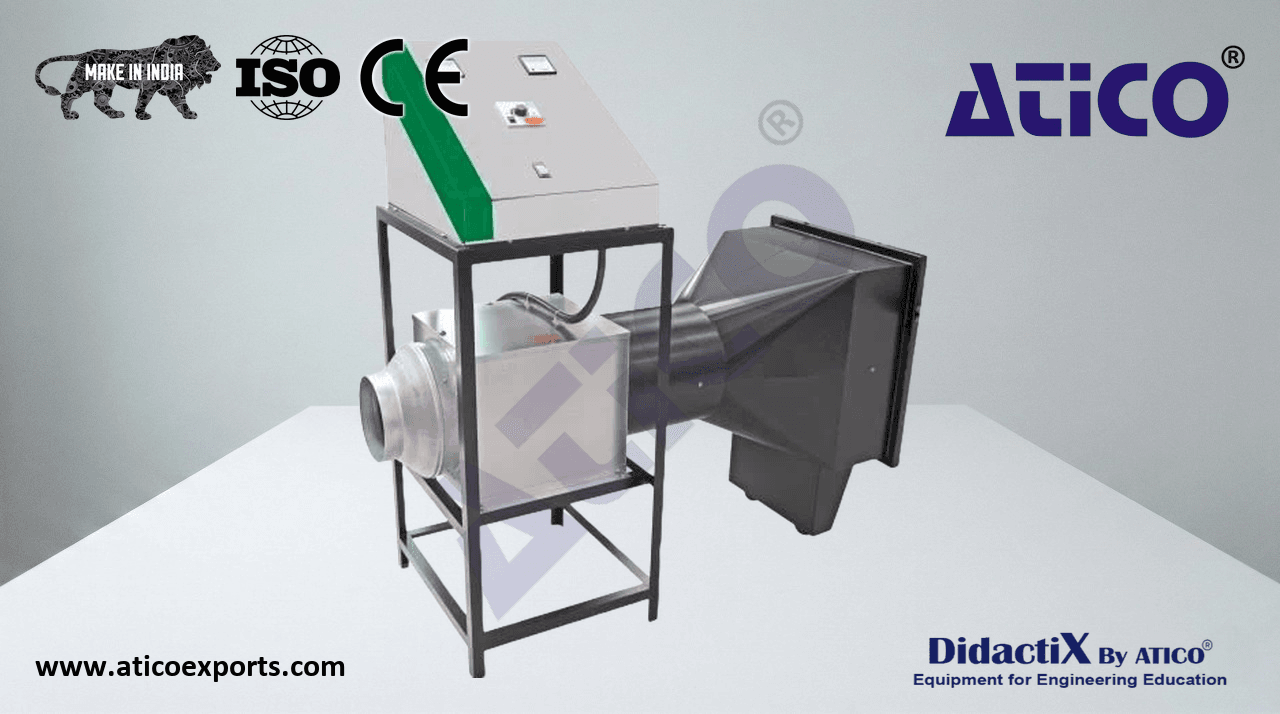

A realistically scaled ventilation training unit enabling students to study both basic airflow and fluid mechanics and the more complex process of commissioning and balancing a multi-ducted air distribution system. The unit comprises a forward-curved variable speed centrifugal fan with integral control console and rectangular air intake with filter holder. The fan discharges into a 200 mm diameter galvanised steel duct connected to the distribution ductwork. Learn about VENTILATION TRAINER air-conditioning India for optimal educational outcomes.. At least six air supply points are provided for balancing experiments. A portable manometer, pitot static tube and hand-held anemometer enable a wide range of experiments. Learn about VENTILATION TRAINER price for optimal educational outcomes..

• Fan motor power: approx. 0.75 kW on load
• Fan supply pressure: up to 890 N/m²
• Fan flow rate: up to 0.8 m³/s (depending on blockage factor)
• Fan discharge duct: 200 mm diameter galvanised steel
• Control console: Analogue voltmeter, analogue ammeter, variable transformer, combined MCB and main switch
• Frame: Epoxy-coated steel
• Ductwork: Galvanised steel
• Manometer: Combined vertical (0–2000 N/m²) and inclined (0–200 N/m²)
• Pitot static tube: 305 mm × 4 mm diameter with spare fluid
• Anemometer: Battery-powered rotating vane type with digital readout; range approx. 0–30 m/s
• Internal 30 mA residual current circuit breaker
