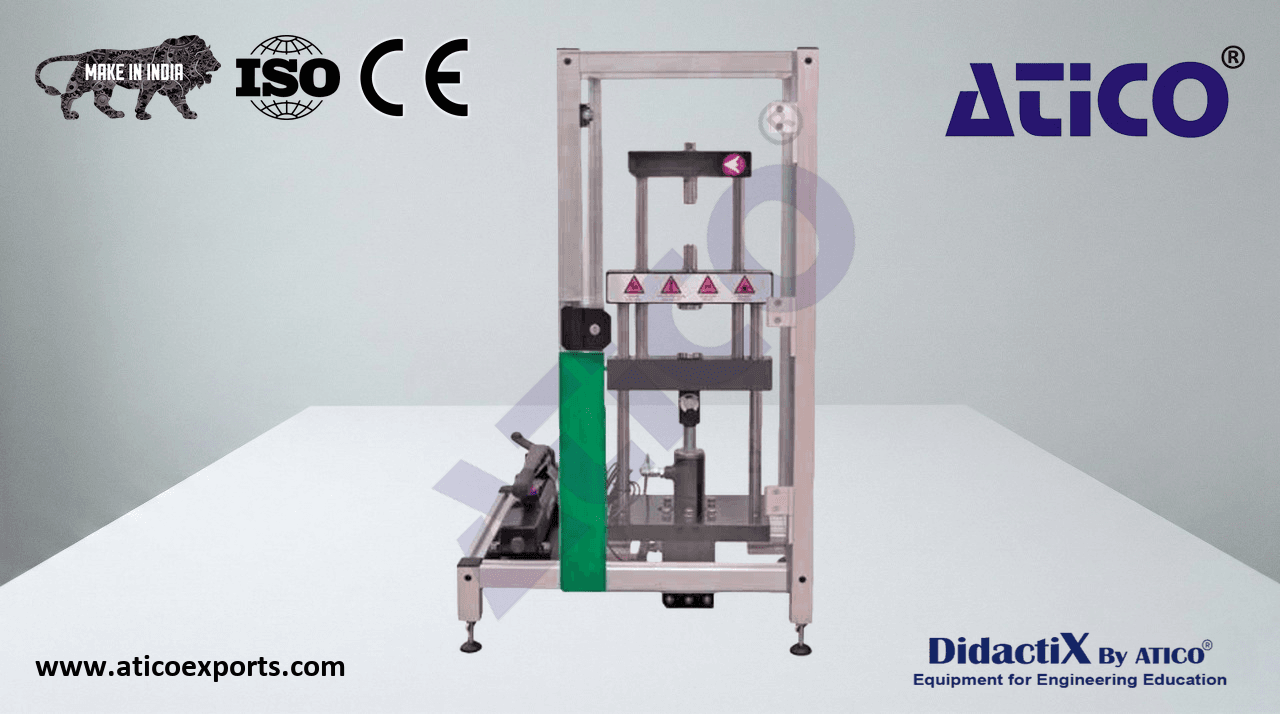

UNIVERSAL TESTING MACHINE Deluxe

A modular, flexible, compact, and safe materials tester allowing students to conduct up to 6 experiments on 7 different material types.

• Breaking force: 35kN
• 360° safety guard
• Sturdy ground steel pillars for durability and repeatability
• Linear slide bearings for ease of use
• Digital extensometer: accurate to 3 decimal places
• Fixings and accessories designed to ×2.5 factor of safety
• Tensile specimens: 85(L) mm; gauge length 36mm; Ø6mm neck diameter; M10 × 1.5mm thread
• Compression specimens: Ø25 × 50(L) mm
• Compression plates: Ø50mm
• 6 optional experiment accessories available
