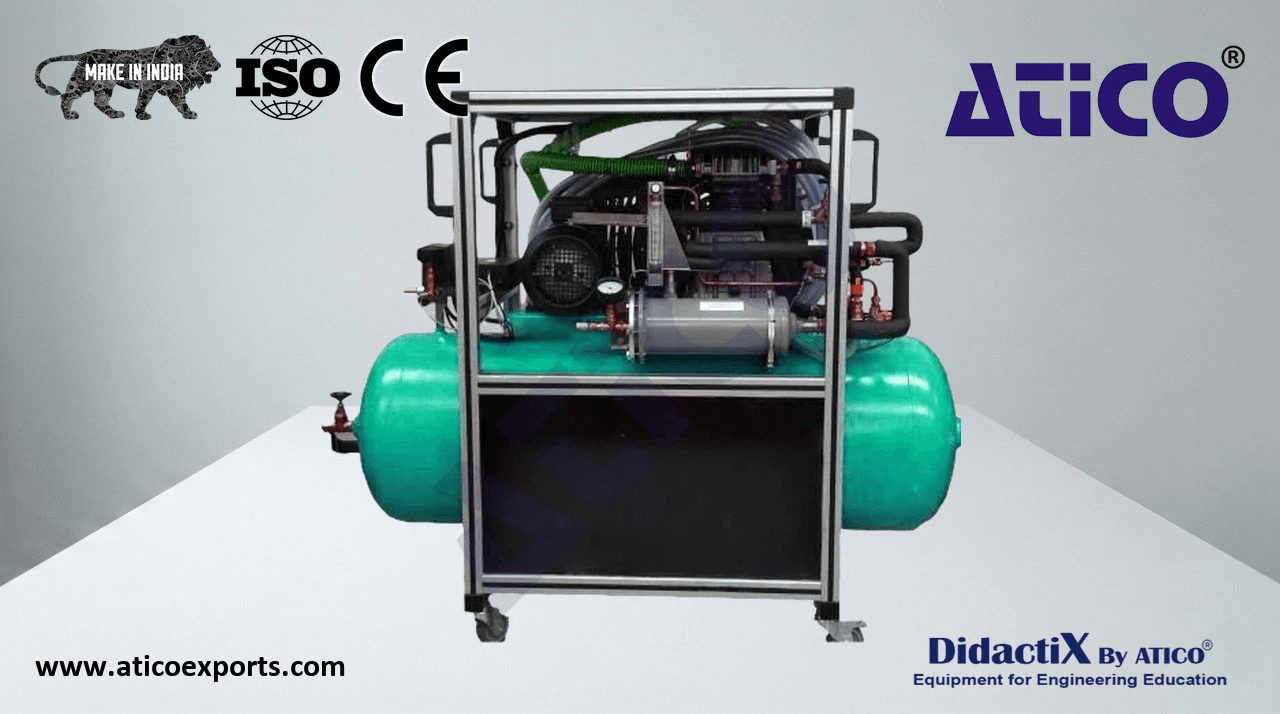

TWO STAGE COMPRESSOR TEST SET

The reciprocating air compressor is a fundamental subject for thermodynamic analysis and study. The process of induction and compression is a cyclic one. However, by the use of a large reservoir on intake and discharge, the system can be examined as a steady flow process. Learn about TWO STAGE COMPRESSOR TEST SET suppliers for optimal educational outcomes..

• Working Pressure: Max 10 bar gauge
• Temperature Range: Ambient to ~180°C
• Motor Power: 3kW
• Pressure Vessel Capacity: 200L
• Two cylinder compressor
• Low Pressure Cylinder: Bore 95mm; Stroke 50mm
• High Pressure Cylinder: Bore 50mm; Stroke 50mm
• Six temperature measuring points

Noise Levels (measured at 0.5m @45°, values vary by installation):

• At operator's ear level: 100.2dB
• In front of apparatus: 96.3dB
• Behind apparatus: 102.5dB
• Left-hand side: 97.9dB
• Right-hand side: 98.4dB
• At exhaust of vessel: 106.3dB
