THREE COMPONENT BALANCE WITH ANGLE FEEDBACK

Supports wind tunnel models in the Subsonic Wind Tunnel and measures their lift, drag and pitching moment.

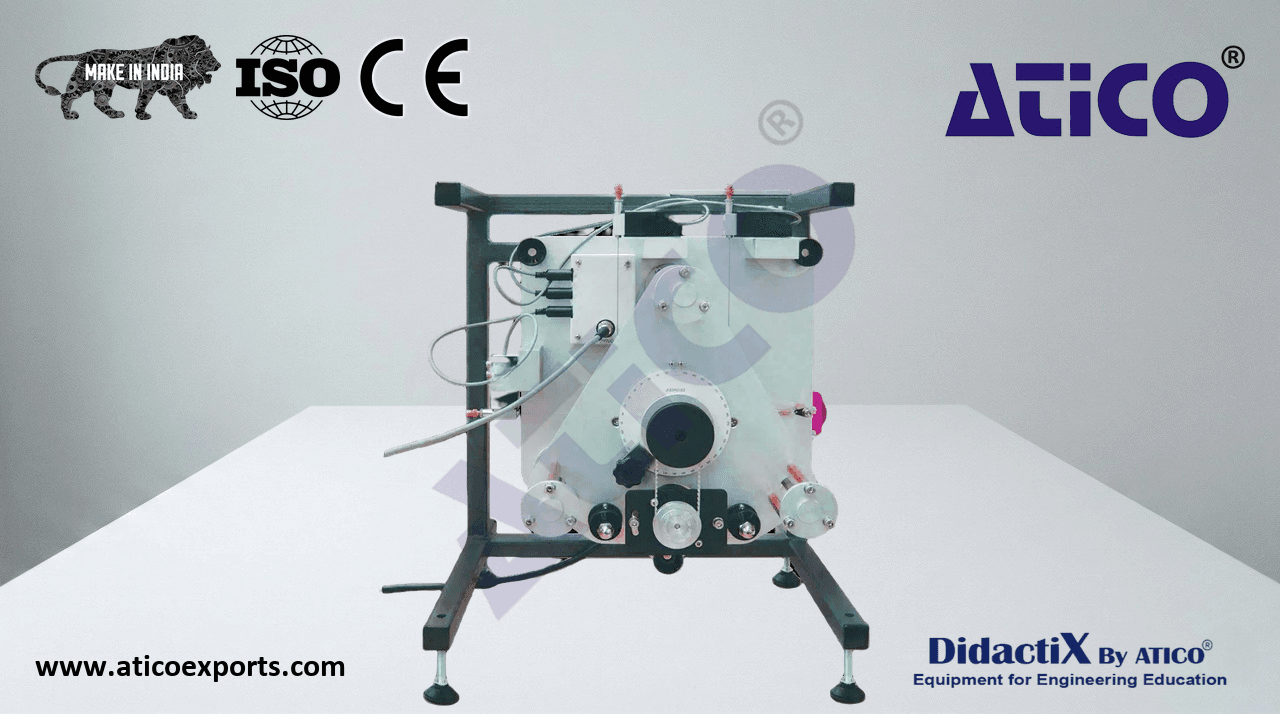

The Three-Component Balance fits onto the working section of the Subsonic Wind Tunnel. It may also be used with other subsonic wind tunnels of similar design. The Three-Component Balance provides an easy-to-use support system for wind tunnel models. Learn about THREE COMPONENT BALANCE WITH ANGLE FEEDBACK price for optimal educational outcomes.. It measures lift, drag and pitching moment exerted on the model. The balance attaches to the vertical wall of the wind tunnel working section. Learn about THREE COMPONENT BALANCE WITH ANGLE FEEDBACK specifications for optimal educational outcomes.. It is designed for air flows from right to left when the balance is viewed from the front. The balance comprises a mounting plate secured to the wind tunnel working section. Learn about THREE COMPONENT BALANCE WITH ANGLE FEEDBACK aerodynamics India for optimal educational outcomes.. A triangular force plate is held on the mounting plate by a mechanism that constrains it to move in a plane parallel to the mounting plate only, while leaving it free to rotate about a horizontal axis. This arrangement provides the necessary three degrees of freedom. Learn about THREE COMPONENT BALANCE WITH ANGLE FEEDBACK exporters for optimal educational outcomes.. Models for use with the balance are available separately. Other models used with the equipment will need a mounting stem. Learn about THREE COMPONENT BALANCE WITH ANGLE FEEDBACK manufacturers for optimal educational outcomes.. The forces acting on the model are transmitted by cables to three strain gauged load cells. The output from each load cell is taken via an amplifier to a microprocessor-controlled display module. Learn about THREE COMPONENT BALANCE WITH ANGLE FEEDBACK for educational labs for optimal educational outcomes.. The display module mounts onto the wind tunnel control and instrumentation frame and includes a digital display to show the lift, drag and pitching moment directly. The equipment is fully compatible with a data acquisition system and can quickly and conveniently connect to a frame-mounting interface unit. Learn about THREE COMPONENT BALANCE WITH ANGLE FEEDBACK suppliers for optimal educational outcomes.. Using a data acquisition system enables accurate real-time data capture, monitoring, display, calculation and charting of all relevant parameters on a suitable computer (computer available separately). The model support of the balance can be rotated by 360 degrees. Learn about Digital THREE COMPONENT BALANCE WITH ANGLE FEEDBACK for optimal educational outcomes.. This allows adjustment of the angle of incidence of the model to the direction of air flow. The model support is locked in the required position by a simple clamp after adjustment. The Angle Feedback Unit (included) fits onto the Three-Component Balance and transmits the rotational angle of the test model back to the automatic data acquisition unit.
