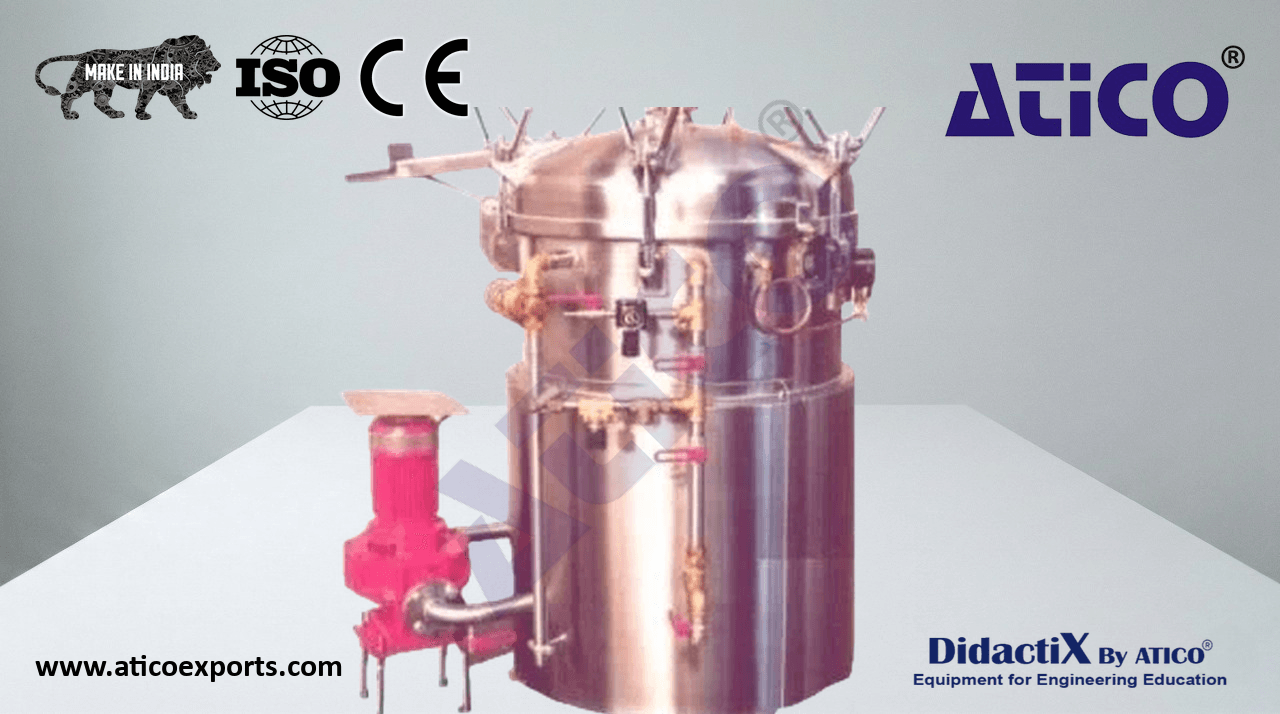

Sterilization Autoclave

High-temperature thermal treatment by steam injection. Destruction of microorganisms by high temperature. Food protection through effective packaging. Learn about Sterilization Autoclave India for optimal educational outcomes.. Sterilization of jars and cans (64 units). Pedagogical Objectives: Study the sterilization value for a given product. Learn about Sterilization Autoclave equipment for optimal educational outcomes.. Track the temperature measured at the core of the product during sterilization.

Technical Description:

Standard equipment:

• Rated at 3 bar, tested at 6 bar by a certified body
• Construction with certified processes and in accordance with the latest European standards
• Hinged lid with 3 swing-bolt closures
• Nozzle for core temperature probe installation
• Nozzles for pressure cooling and back-pressure connections
• Electric heating via immersion heater
• Low water safety electrode

Safety accessories:

• 2 safety valves rated and sealed at 3 bar
• 1 drain valve
• 1 pressure gauge
• 1 level gauge
• 1 drain cock
• 1 mercury thermometer
• 1 disc recording thermometer

Pressure cooling equipment:

• General water inlet and non-return valve
• Set of selector valves: upper water inlet with deflector; lower water inlet
• Water outlet and adjustable exhaust valve

Back-pressure system:

• Air inlet for back-pressure
• Adjustable air pressure reducer with control gauge
• Stop valve / non-return valve

Rated at 3 bar, tested at 6 bar by a certified body Construction with certified processes and in accordance with the latest European standards Autoclave body dimensions Hinged lid with 3 swing-bolt closures Nozzle for core temperature probe installation Nozzles for pressure cooling and back-pressure connections Electric heating via immersion heater Low water safety electrode 2 safety valves rated and sealed at 3 bar 1 drain valve 1 pressure gauge 1 level gauge 1 drain cock 1 mercury thermometer 1 disc recording thermometer General water inlet and non-return valve Set of selector valves: For upper water inlet with deflector For lower water inlet Water outlet and adjustable exhaust valve Air inlet for back-pressure Adjustable air pressure reducer with control gauge Stop valve / non-return valve
