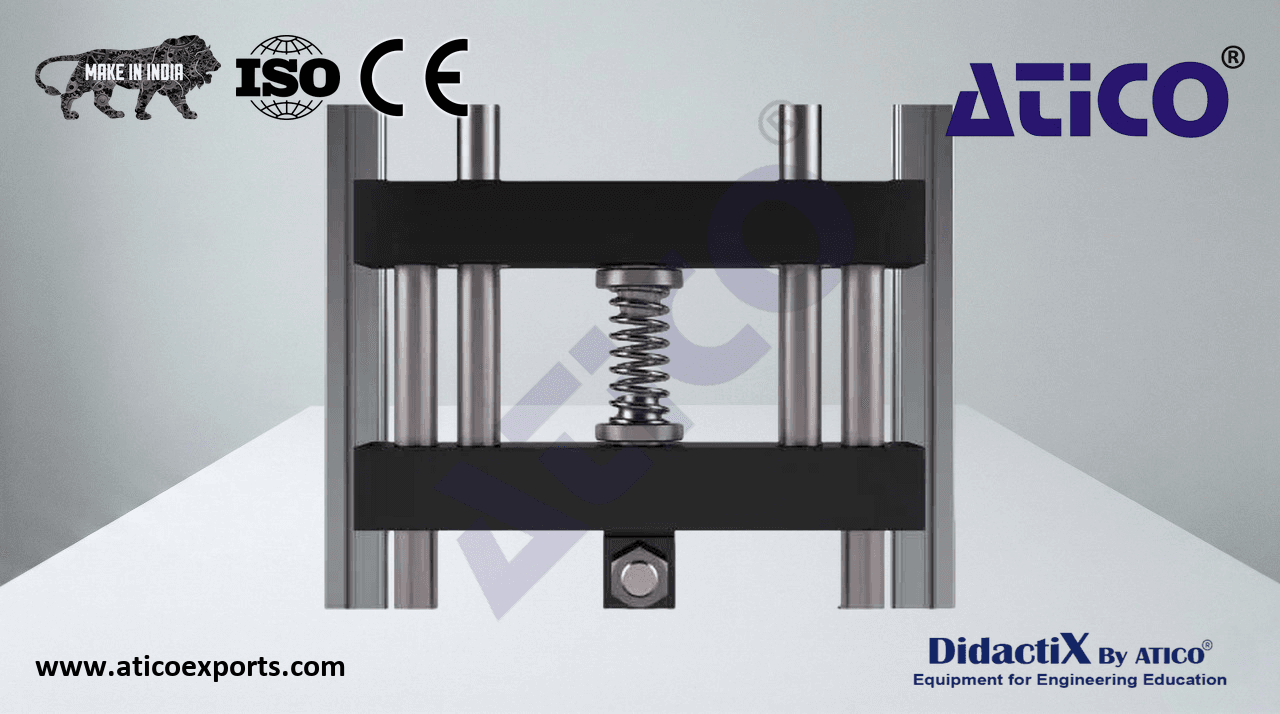

SPRING TESTING SET

This accessory is designed for use within the compression area of a compatible universal testing machine (not supplied). Selected springs are compressed and the force and deflection displayed via the machine interface, allowing their spring rate to be calculated and compared with actual data. Three types of compression springs are provided with differing spring rates. Learn about SPRING TESTING SET equipment for optimal educational outcomes.. Two sets of disc springs are supplied which can be stacked in different orientations (series or parallel) to adjust their effective spring rate.

Compression Springs × 3 (all 76.2(L) × Ø35.5mm; music wire):

• Spring rate: 24.2 N/mm
• Spring rate: 29.8 N/mm
• Spring rate: 21.0 N/mm

Disc Springs (all Ø34mm; high-quality spring steel):

• 1mm thick
• 1.5mm thick
