SIMPLE SUSPENSION BRIDGE

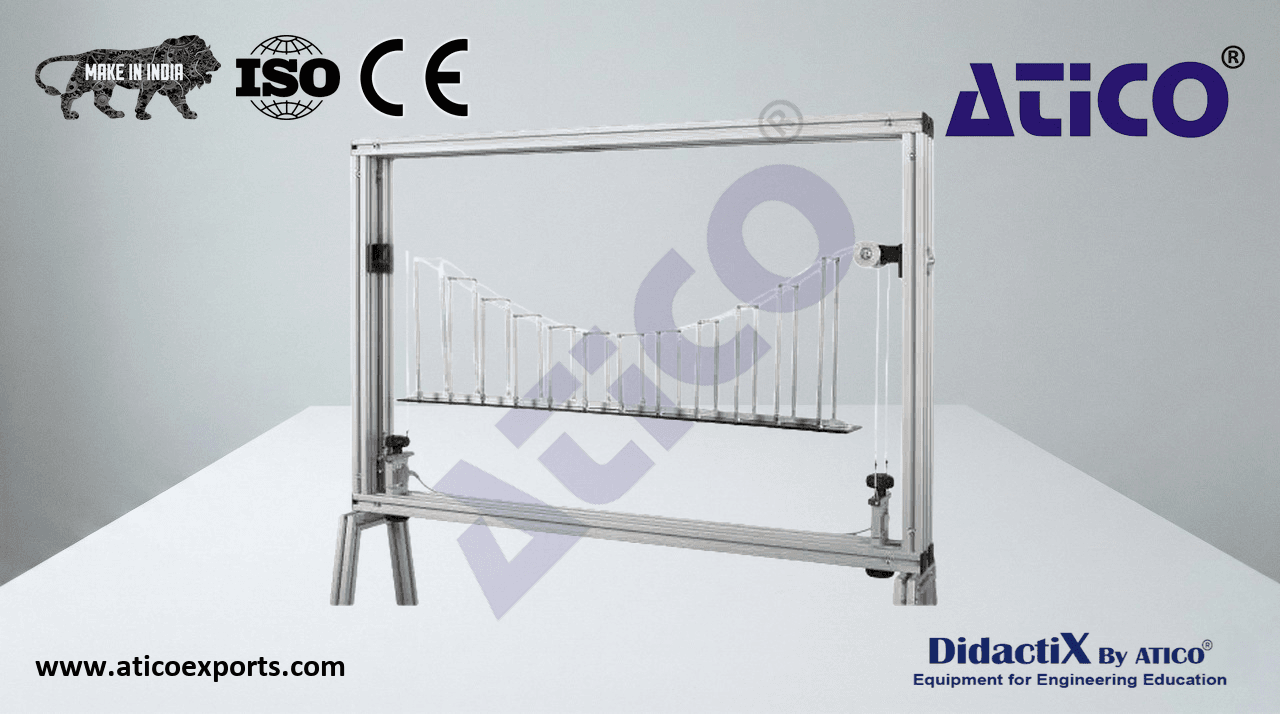

A rigid bridge deck is suspended from twin steel suspension cables by pairs of vertical tie rods, creating cables of parabolic form with a 1. 0 m span and 0. 2 m dip. Learn about SIMPLE SUSPENSION BRIDGE exporters for optimal educational outcomes.. Cable ends pass over pulleys terminating in load cells, which record cable tension when connected to a digital interface (sold separately). Bridge loading is applied via calibrated UDL bars (each with a known N/m value) and a calibrated point load mass, which can be quickly positioned anywhere along the deck. Learn about SIMPLE SUSPENSION BRIDGE manufacturers for optimal educational outcomes..

• Bridge deck length: 1000 mm
• Bridge deck width: 102 mm
• Cable dip: 200 mm
• UDL bar: 12.5 N/m each
• Point load: 20 N
• Load cell range: 500 N
