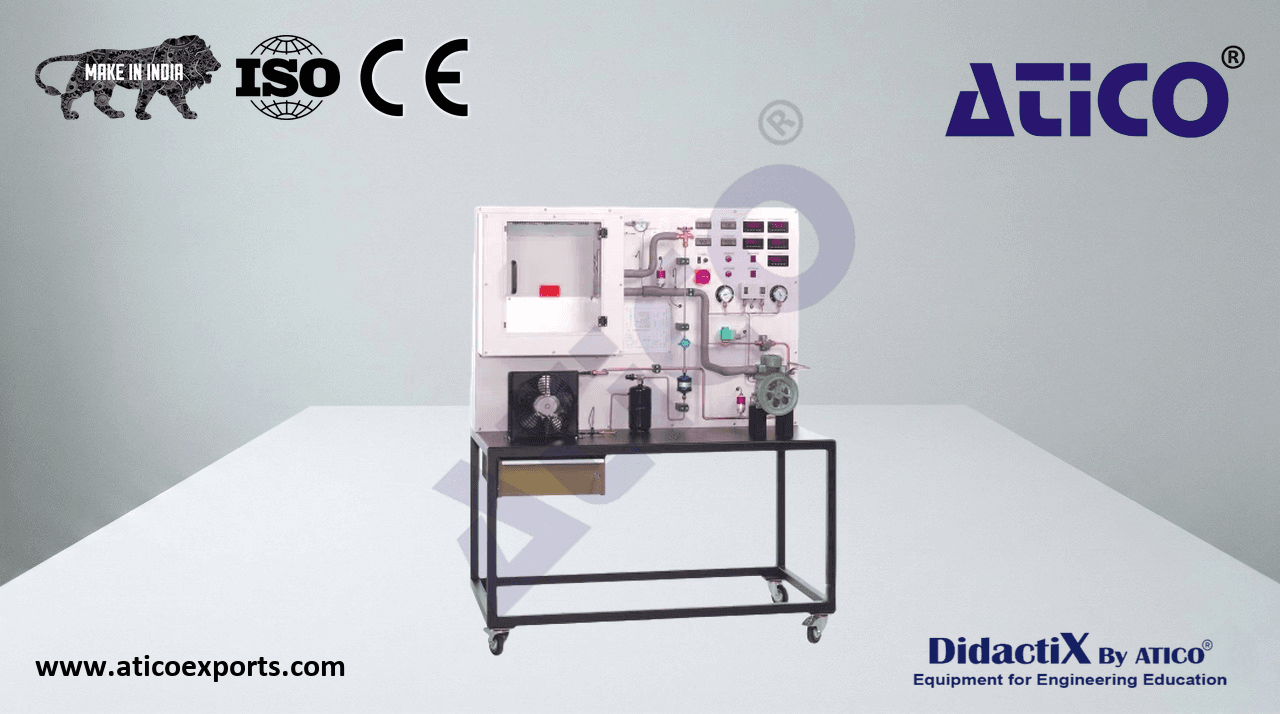

Refrigeration system with open compressor Deluxe

ET 165 enables basic experiments in the field of refrigeration. The trainer includes a closed refrigeration circuit with open compressor, a condenser with fan, a thermostatic expansion valve and an evaporator in a refrigeration chamber with transparent door. A fan in the refrigeration chamber ensures an even temperature distribution. A cooling load is simulated by an adjustable heater in the refrigeration chamber.

• investigation of a refrigeration circuit with speed-controlled compressor
• refrigeration circuit with open compressor, condenser, thermostatic expansion valve and evaporator in refrigeration chamber
• cooling load in the refrigeration chamber adjustable via heater
• drive and speed adjustment of the open compressor via HM 365
• condenser and evaporator with fan
• pressure switch to protect the compressor
• sensors for pressure, temperature, power and speed
• refrigerant mass flow rate precisely calculated via software
• software for data acquisition via USB under Windows 11
• refrigerant R513A, GWP: 631
