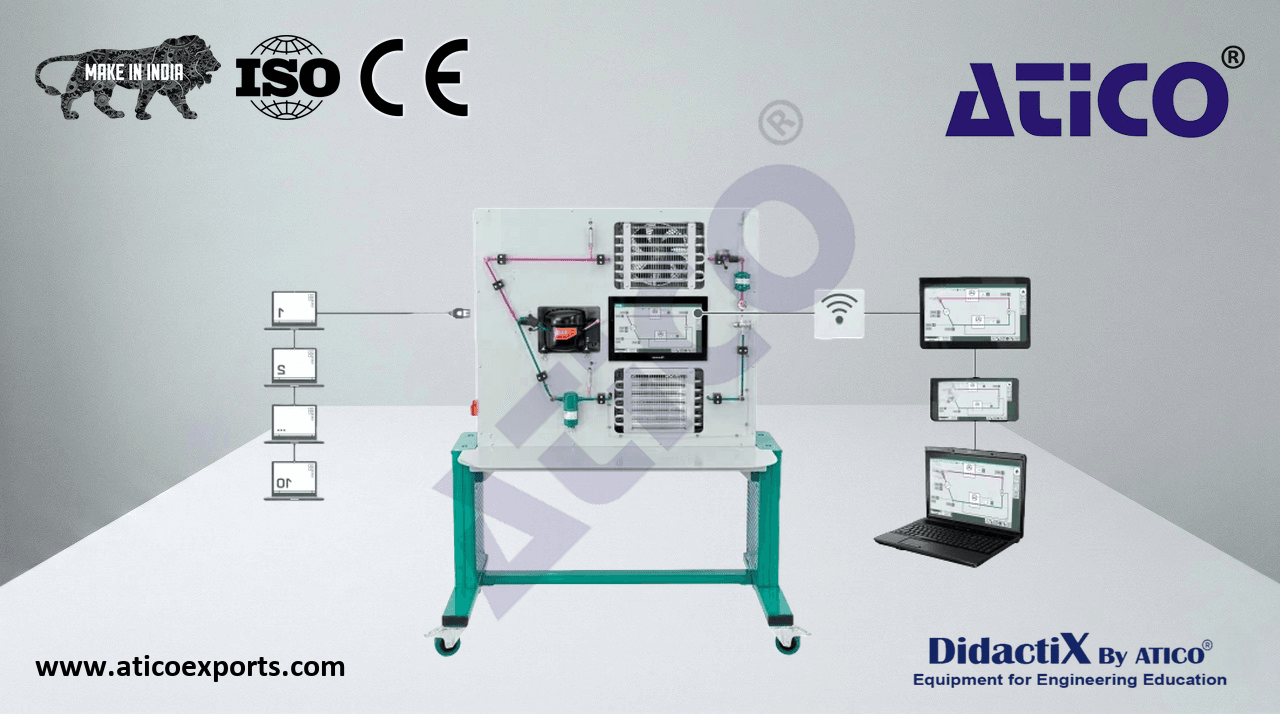

Refrigeration cycle: refrigeration plant and heat pump Deluxe

Make complex changes of state in the otherwise closed piping systems of refrigerating plants visible and tangible. With the aim of creating a memorable concept of the theoretical comparative process through the positions of the components and pipes, this trainer makes an important contribution to the recognition of technical analogies in real plants. In refrigeration plants, the cooling effects are used for cooling. Learn about Refrigeration cycle: refrigeration plant and heat pump price for optimal educational outcomes.. If the heat system is used to produce heat, this is known as a heat pump.

• make complex changes of state of refrigerating plants/heat pumps visible and tangible
• refrigeration circuit: compressor, condenser with ventilator, thermostatic expansion valve, evaporator with ventilator
• EC ventilator enables very high load variability
• sensors for pressure, temperature, flow rate, power
• precise calculation of refrigerant mass flow
• 15,6” touch screen with animations showing how the main components work
• representation of all measured values in real time over a time axis, such as the log p-h diagram
• adjust the scale of the axes and the degree of magnification on the touch screen
• control of the experimental plant using a PLC, operated by touch screen
• screen mirroring: possible to mirror the user interface on up to 10 end devices
• data acquisition via PLC on internal USB memory, access to stored measured values via WLAN/LAN with integrated router/LAN connection to customer’s own network or direct LAN connection without customer network
• refrigerant R513A, GWP: 631
• digital multimedia teaching material online in the GUNT Media Center: E‑Learning course, worksheets, videos
