RADIAL HEAT CONDUCTION EXPERIMENT

Experiment that introduces the principle of radial heat conduction and thermal conductivity. Fits onto the Heat Transfer Experiments Base Unit.

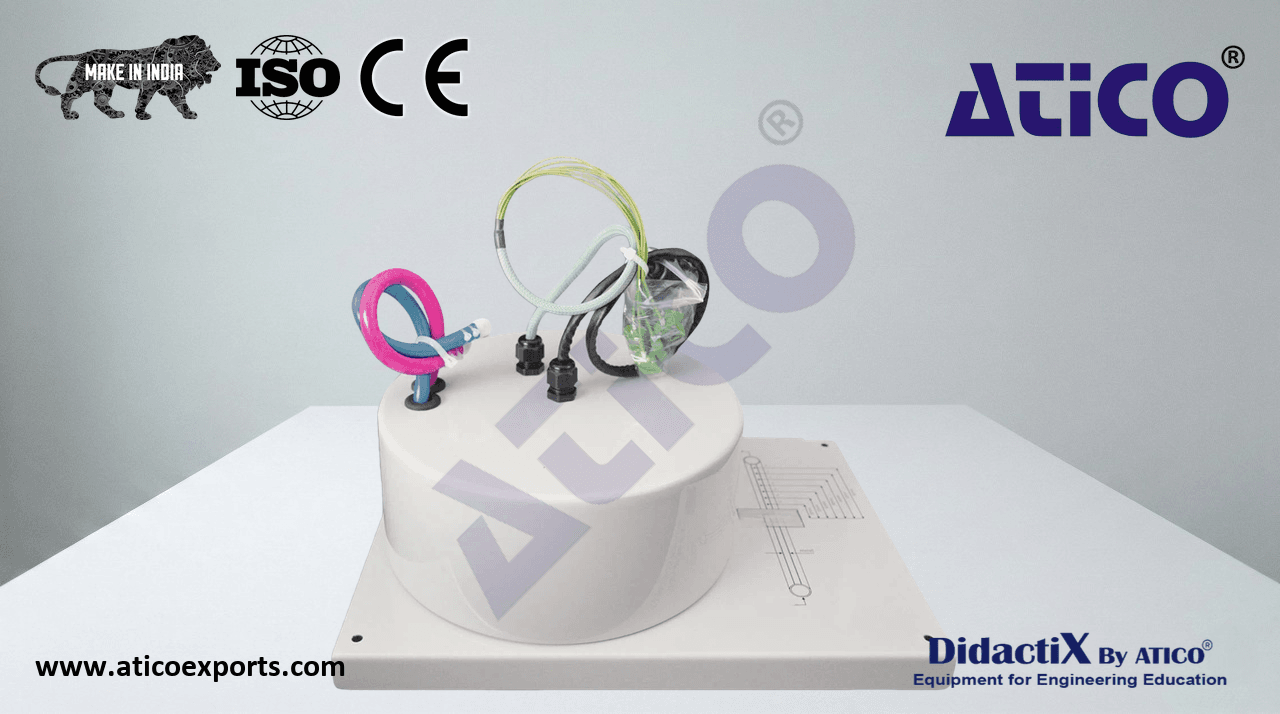

This experiment has a solid brass disc with an electric heater (heat source) at its centre and a circular cross-section cooling tube (heat sink) around its circumference. It mounts on a base plate with a clear schematic of the experiment layout. The electric heater and thermocouples connect to sockets on the Heat Transfer Experiments Base Unit, which also supplies the cold water feed and drain for the heat sink. Learn about RADIAL HEAT CONDUCTION EXPERIMENT manufacturers for optimal educational outcomes.. Students turn on the cooling water flow and adjust the heater power until the experiment reaches equilibrium. At equally spaced radii on the disc, seven thermocouples measure the temperature as the heat conducts radially outwards from the heater. Learn about RADIAL HEAT CONDUCTION EXPERIMENT equipment for optimal educational outcomes.. Insulation around the disc reduces heat loss by convection and radiation, so that the results should match the theory for simple radial conduction only.
