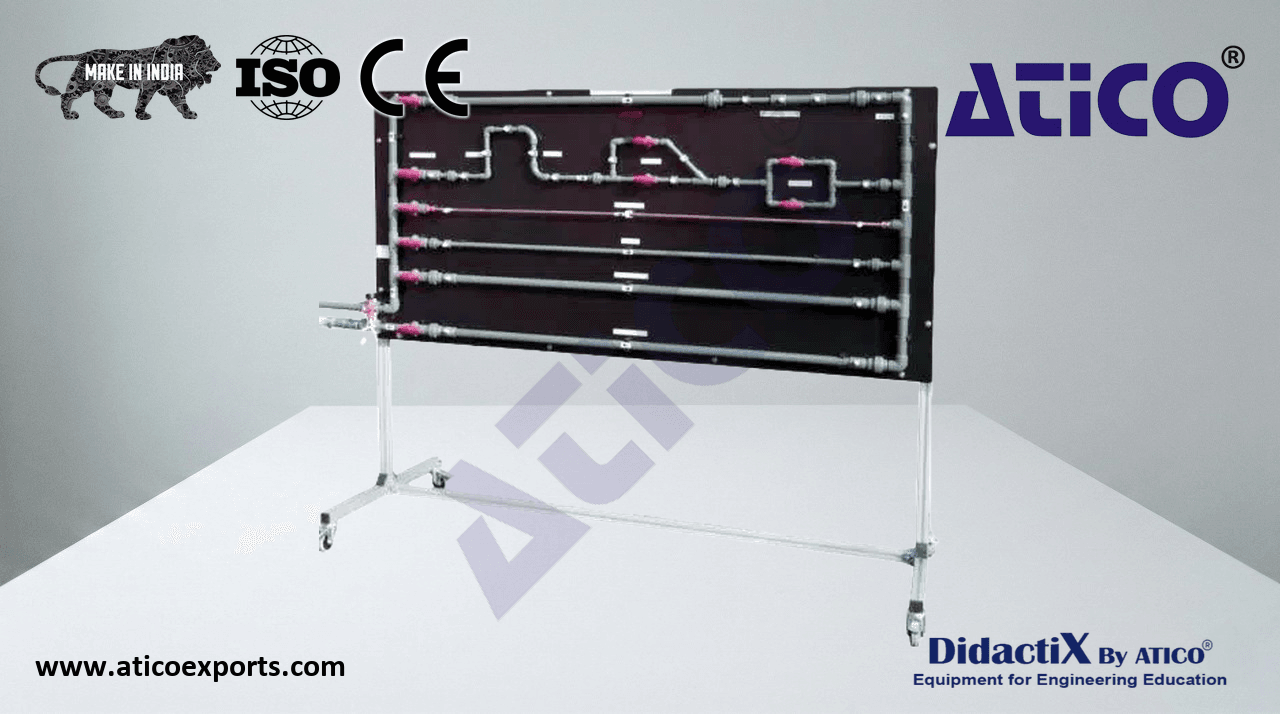

PRESSURE LOSSES IN BENDS AND FITTINGS

This unit demonstrates the pressure losses that occur in different types of pipes and plumbing arrangements. It comprises 6 different horizontal sections featuring different diameter, roughness and material pipes, along with long and short radius bends, parallel sections, and constrictions. The unit also has an expandable top section for investigating different configurations or student-designed arrangements. Learn about PRESSURE LOSSES IN BENDS AND FITTINGS price for optimal educational outcomes.. Isolating valves are fitted to each section so that each component can be examined individually. A handheld digital manometer fitted with quick release couplings allows quick and accurate measurement of the pressure drop across any of the pipes or fittings. Learn about PRESSURE LOSSES IN BENDS AND FITTINGS for educational labs for optimal educational outcomes.. In conjunction with the Flowmeter Module, the unit can be used to examine various pipe flow theorems covering topics such as friction factors, Reynolds numbers, flow velocities, and laminar boundary layers for turbulent pipe flow.

Fittings Included:

• 90° Elbow
• Parallel pipes
• 45° swept tee
• Long elbows
• Short elbows
• Sudden constriction

Pipe Types:

• ½" diameter copper pipe
• 20mm diameter PVC pipe
• 32mm diameter rough bore PVC pipe
• 32mm diameter smooth bore PVC pipe

Other Features:

• 10 valves
• 22 pressure tapping points
• Expandable top section with 3 separating modules
• Flexible inlet and outlet allowing unit to be rotated 90° for space saving
• Detachable feet to allow wall mounting
