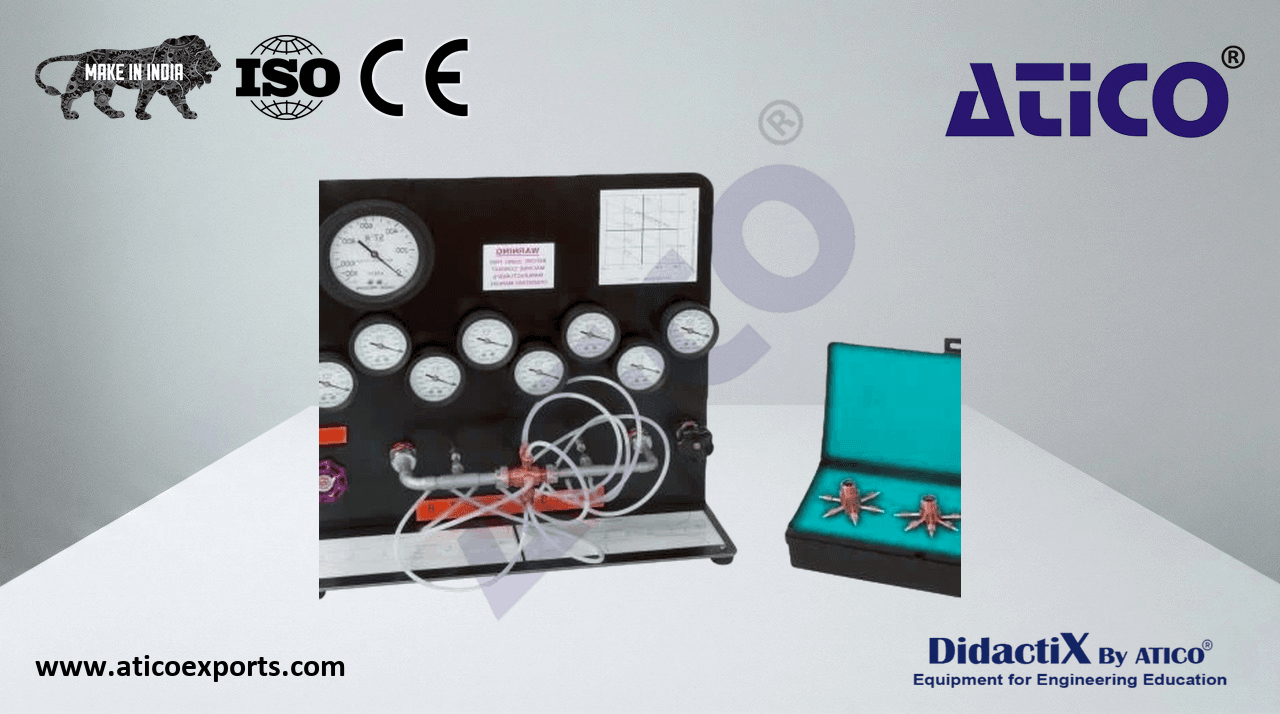

NOZZLE PRESSURE DISTRIBUTION MODULE

Two convergent-divergent nozzles with the same throat diameter but different discharge area and a single convergent nozzle having the same throat diameter are supplied and fit in a common test section. All three nozzles have axial static pressure tapings allowing the approach, throat and divergent section pressures to be measured. The variation of pressure ratio and mass flow may be investigated for all three nozzles. Learn about NOZZLE PRESSURE DISTRIBUTION MODULE suppliers for optimal educational outcomes.. The unit includes convergent-divergent ducts designed to produce Mach 1. 0 at the throat and supersonic velocities downstream. Learn about NOZZLE PRESSURE DISTRIBUTION MODULE for educational labs for optimal educational outcomes.. Instrumentation on the base unit and the optional module allow all relevant temperatures, pressures and flow rates to be recorded.

• Back Pressure Gauge: 0…1100kN/m²
• 8 x Nozzle Pressure Gauges
• 2 x Thermocouples
