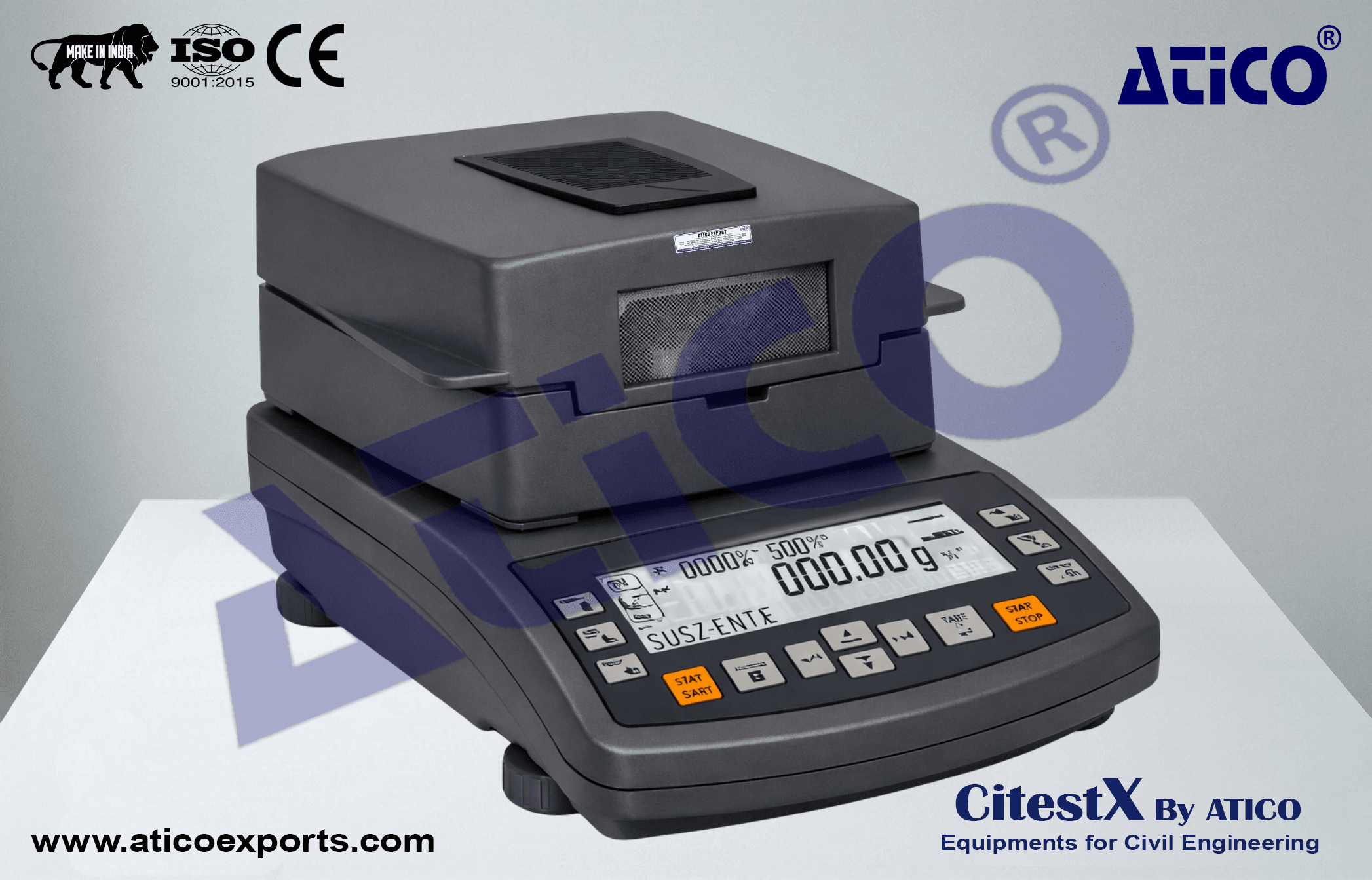

Moisture Analyser

Moisture analyzers are laboratory measuring instruments used to determine the moisture content or relative humidity in small samples of various materials. These analyzers set new standards in moisture analysis with advanced features and improved usability. They are equipped with a clear, readable LCD display that includes an additional text line to present supplementary information such as product names or tare values. Using pictograms, the display indicates the currently active mode, computer connection status, and various operational functions related to both the balance and service features.

Direct Access to Information

Functions and databases can be accessed quickly using the keyboard soft keys:

• Database direct access to databases
• Function direct access to basic functions
• F1 and F2 programmable function keys and menu navigation
• Reports access to drying process report database
• Profile access to parameter settings
• Sample access to the products database

Max capacity (g) :

• 50

Readability (mg) :

• 1

Tare range (g) :

• -50

Operating Temperature (C) :

• (+10) - (+40)

Max sample weight (g) :

• 50

Moisture content readability (%) :

• 0.001%

Moisture content repeatability :

• 0.05% (sample weight of 2 g), ??0.01% (sample weight of 10 g)

Max sample height :

• h = 20 mm

Weighing pan size :

• 90 mm, h = 8 mm

Drying temperature range :

• 160C

Heating module :

• IR emitter

Drying method :

• 4 drying profiles (standard, fast, step, mild)

Finish mode :

• 4 modes (automatic, manual, time-defined, user-defined)

Additional functions :

• sample traceability

Heating module power :

• 450 W

Power consumption :

• 4 W

Power supply :

• 230 V, 50 Hz, AC

LCD display :

• LCD (backlit)

Communication Interface :

• 1 RS 232, USB-A, USB-B, WiFi (option)

Net weight / Gross weight (kg) :

• 4.8 / 6.3

Packaging size (mm) :

• 470-380-336

Construction / Design :

• The moisture analyzer is fitted with multiple communication interfaces,USB Type A, USB Type B, and an optional Wi-Fi connection. The instrument is housed in a durable plastic casing designed for laboratory use.

Internal Information System :

• The internal information system of the moisture analyzer is based on six integrated databases, enabling multiple operators to manage and analyze a large number of samples efficiently. The recorded data can later be reviewed and analyzed for further study.

Data Storage (Databases) :

Collected data is stored in the following six databases:

• Users up to 100 users
• Products up to 1000 products
• Weighments up to 1000 weighments
• Tares up to 100 tares
• Programs up to 100 drying programs
• Drying Process Reports up to 1000 reports

Data Exchange :

• Data exchange within the system is carried out through a USB interface that supports bi-directional communication. This feature allows users to easily import and export databases using USB memory devices.
