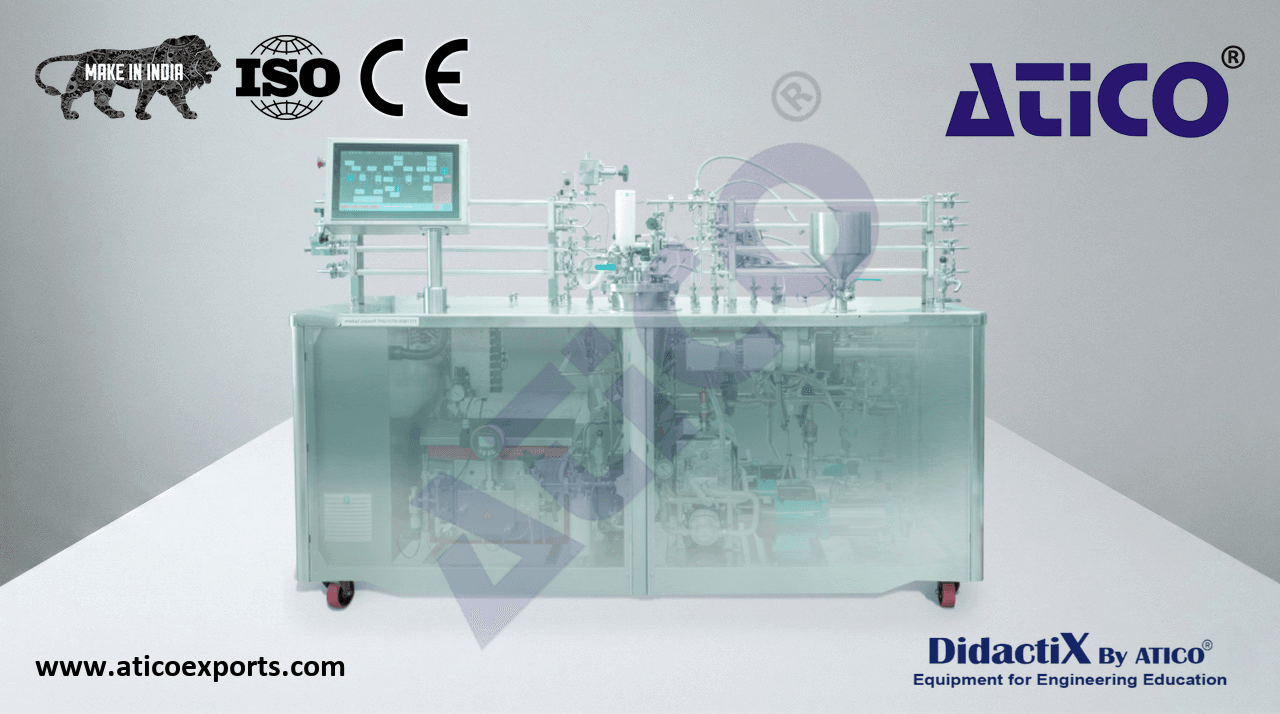

Modular Miniature Scale HTST / UHT Process System

A modular HTST/UHT processing system designed to treat liquid products at laboratory and pilot-scale flow rates. Interchangeable modules support direct or indirect heating, aseptic processing, homogenisation, and additional chilling.

A compact base processing unit designed for flexible thermal treatment of liquid products. The modular architecture allows rapid configuration changes to suit different product requirements and processing objectives.

Pump type: Progressing cavity variable-speed pump Particulate handling: 0.8 mm Fibre handling: 25 mm Flow rate: 10???120 L/hr

Plate heat exchangers: 316 stainless steel plates with food-grade silicone gaskets Working pressure: Up to 10 bar

Tubular heat exchangers: 316 stainless steel Tube diameter (product side): 8.1 mm Test pressure: 15 bar

Scraped surface heat exchanger: Heat transfer area 0.045 m?? Barrel working pressure: 10 bar

Utilities: Water: 5 L/min @ 2 bar Electricity: 400 V / 3 phase / 50???60 Hz Compressed air: 6 bar Steam: 6 bar, approx. 15 kg/hr

• Highly configurable system architecture
• Rapid start-up and shutdown
• Quick changeover between heat exchanger types
• Direct and indirect heating capability
• Support for tubular, plate, scraped surface and steam injection modules
• Low product hold-up
• Modular expansion for product-specific processing
• Full sterile processing options
• Touchscreen HMI with PLC control
• Hygienic fittings throughout
• Optional integral homogenisation
• Standard throughput range suitable for pilot-scale work
• High-temperature processing capability
• Controlled preheating and cooling
• Integrated clean-in-place system
• Data logging as standard
