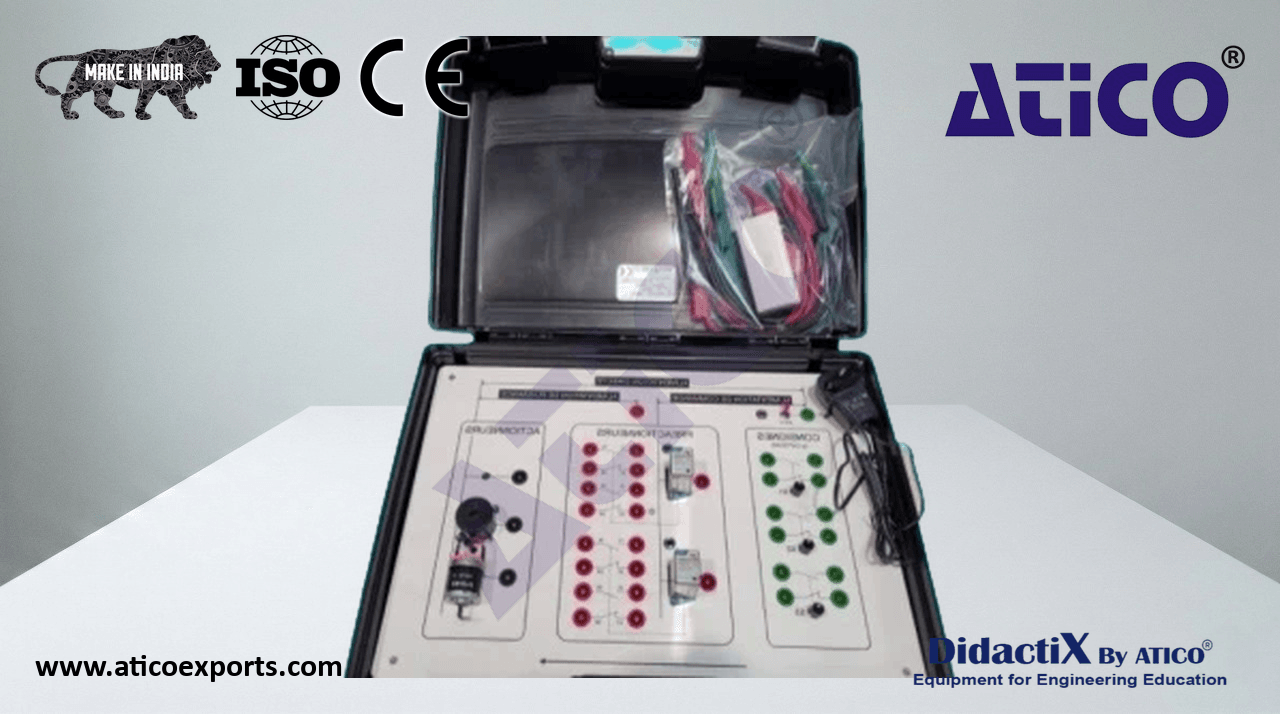

Logic Functions Panel

With this discovery panel for elementary logic functions (YES, NOT, AND, OR, NAND, NOR), students perform wiring from three command inputs in direct or relayed power supply. They then verify the predictable results of truth tables on three types of actuators (lamp, motor, buzzer) and simulate a command section of a system (hand dryer, garage door, blind, etc. ). Learn about Logic Functions Panel equipment for optimal educational outcomes.. Educational Objectives: Discovery of basic logic functions, discovery of basic relayed logic functions, simulation of command of an inaccessible part of systems.

Technical Description

The logic functions product consists of a wiring panel equipped with standardized sockets and industrial components. The front panel is silk-screen printed to represent the components and their wiring.
