JET ATTACHMENT INVESTIGATION

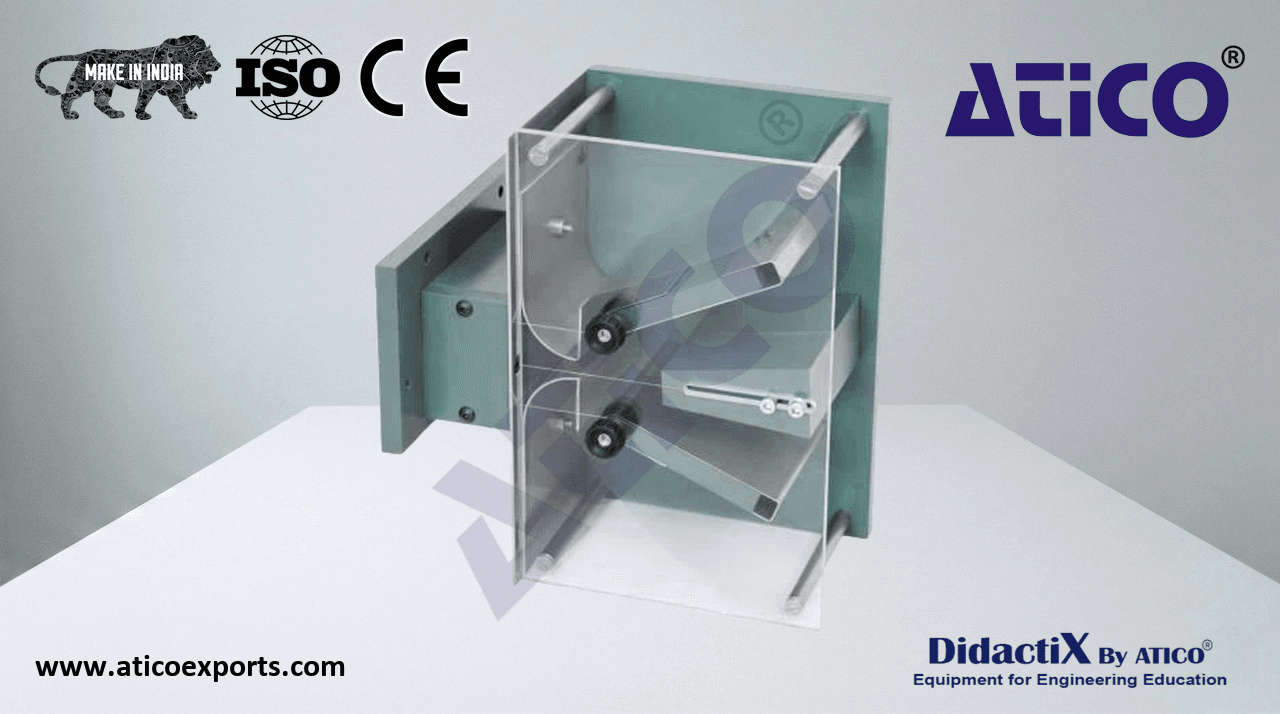

An optional duct module for the airflow system enabling students to investigate jet attachment to an adjacent wall and the Coand?? effect. A rectangular slit directs an air jet towards a Y-shaped duct with two outlet passages. The duct shape can be modified by tilting and sliding moveable elements. Learn about JET ATTACHMENT INVESTIGATION exporters for optimal educational outcomes.. By directing air from one side or another at the jet, airflow can be switched between the two Y-shaped passages ??? analogous to a pneumatic flip-flop.

• Jet depth: 100 mm
• Jet width: Adjustable
• Distance of jet from wall: 12 mm
• Wall radius: 6 mm
• Wall angle: Adjustable
• Edge of jet to wall distance: Adjustable
