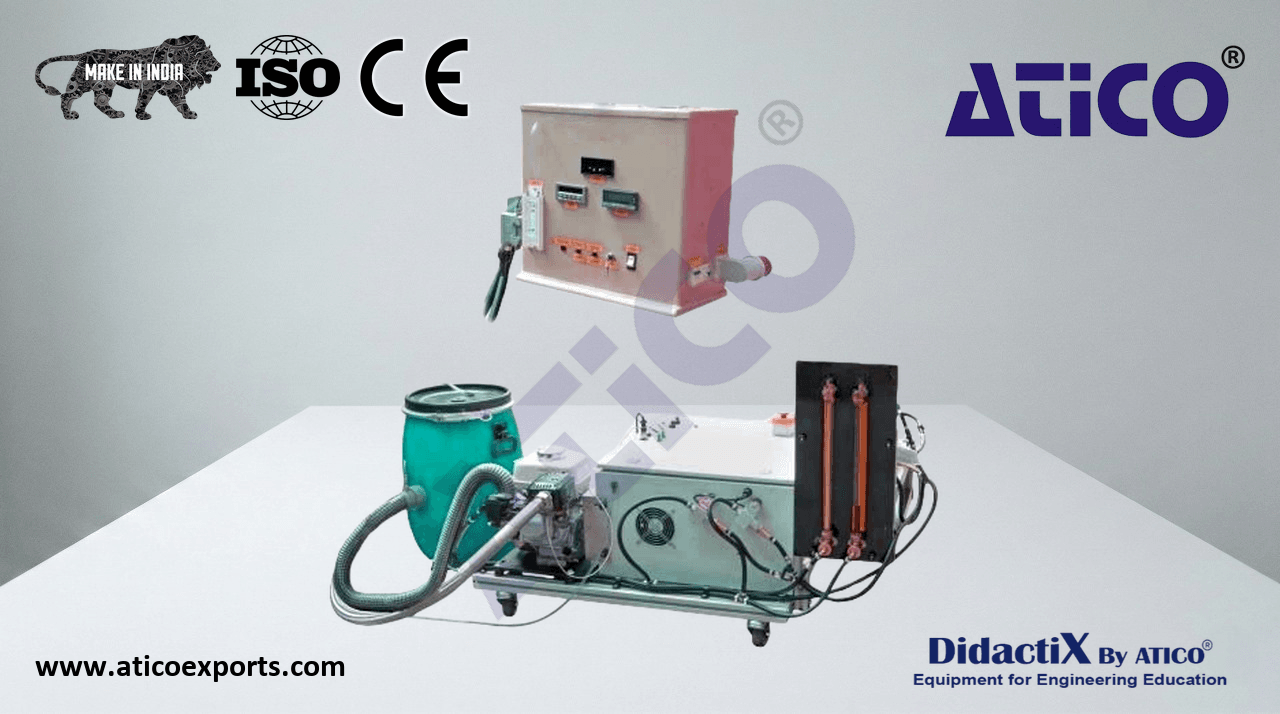

INTERNAL COMBUSTION ENGINE TEST STAND - DIESEL

A robust floor mounted engine test stand with modular instrumentation and control system. A regenerative dynamometer includes both torque and speed control together with direct reading dynamometer digital display. The dynamometer will accept engines up to 4kW shaft power output. Learn about INTERNAL COMBUSTION ENGINE TEST STAND - DIESEL exporters for optimal educational outcomes.. Engine speed and all relevant temperatures are also displayed on digital panel meters on the remote instrumentation console. Air to the engine passes through an intake orifice and pulsation damper. Learn about INTERNAL COMBUSTION ENGINE TEST STAND - DIESEL combustion India for optimal educational outcomes.. The flow measurement orifice is connected to a panel mounted manometer to allow differential pressure measurement. Fuel flow is measured using a calibrated volumetric fuel gauge. Learn about INTERNAL COMBUSTION ENGINE TEST STAND - DIESEL suppliers for optimal educational outcomes.. Each of the optional engines are pre-installed on a standard mounting plate that is designed to allow quick and easy installation on the test bed. Each engine is supplied with a suitable fuel tank and supply system with quick release self sealing fuel couplings. Learn about INTERNAL COMBUSTION ENGINE TEST STAND - DIESEL for educational labs for optimal educational outcomes.. Operator safety is ensured by a range of interlocks and safety cut out devices.

• Vertical cylinder, 4 cycle, air-cooled Four Stroke Diesel Engine
• Maximum Output: 4.6HP (3.5kW)
• Rated Speed: 3600rpm
• Displacement: 211cc
• Bore and Stroke: 70 x 55mm
• Cylinders: 1
