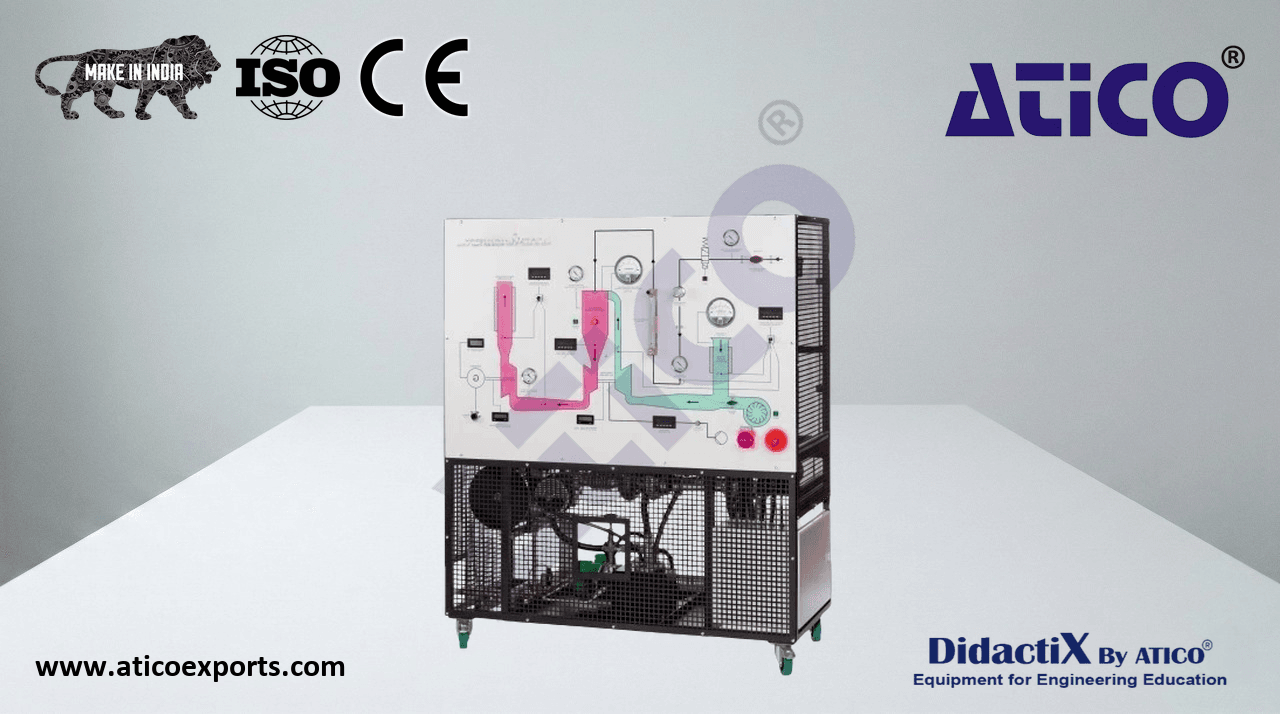

Gas turbine with power turbine Deluxe

Gas turbines with free-running power turbines are used as drive systems for power plants, ships, and heavy vehicles. This unit explores the function and operating behaviour in a two-shaft arrangement.

• function and behaviour of a gas turbine in a two-shaft arrangement
• operation with power turbine and generator
• asynchronous motor with frequency converter as generator
• start-up fan for high-pressure turbine
• conversion of energy into heat using braking resistors
• effective silencing at intake and exhaust
• sensors record data visualised on process schematic displays
