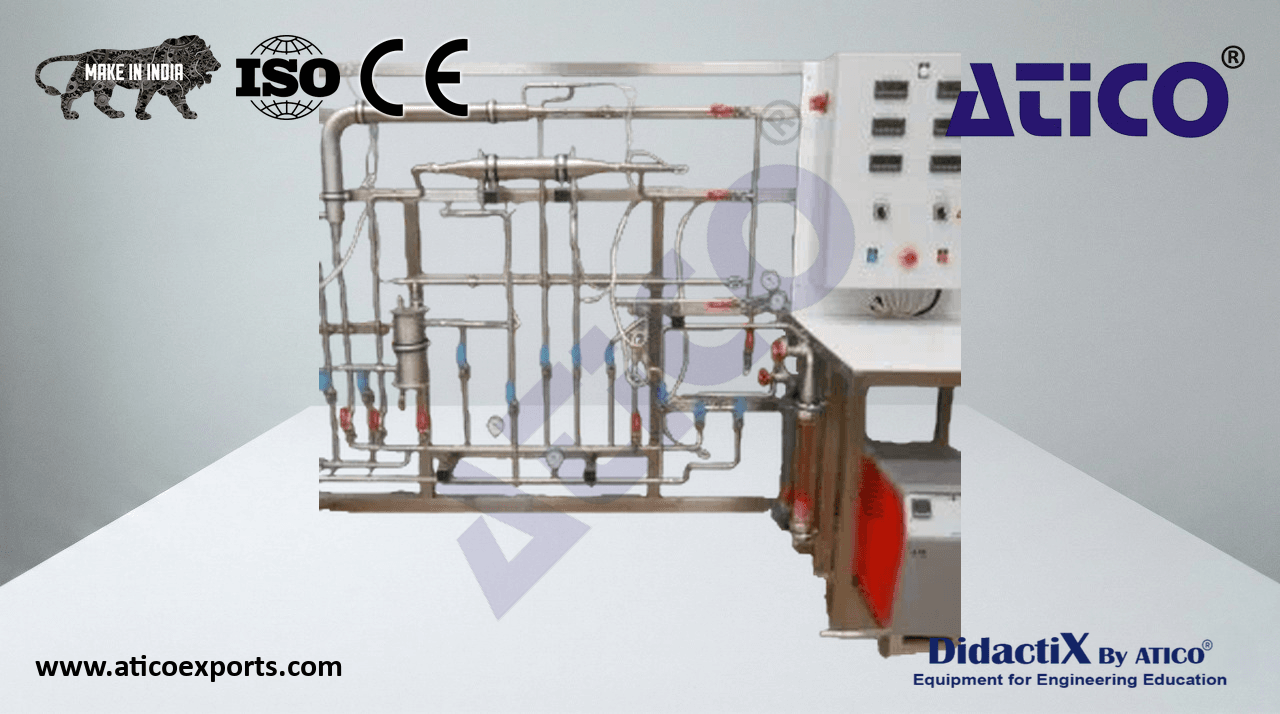

Four Heat Exchanger Study Bench

This bench allows the study and comparison of four types of heat exchangers: plate, multi-tube, double-tube, and coil. Heat exchanges are studied in co-current or counter-current. Educational Objectives: Determination of heat balances, global exchange coefficients, and flow regimes. Learn about Four Heat Exchanger Study Bench suppliers for optimal educational outcomes.. Influence of transfer mode (co-current/counter-current). Influence of hot and cold fluid supply. Learn about Four Heat Exchanger Study Bench manufacturers for optimal educational outcomes.. Comparison of different exchanger types. Analysis of heat exchange performance. Learn about Four Heat Exchanger Study Bench for educational labs for optimal educational outcomes..

Composition:

Four exchangers with identical exchange surfaces (0. 1 or 0.

Four exchangers with identical exchange surfaces (0.1 or 0.2 m²) but of different types: 1 brazed plate exchanger 1 single-tube exchanger 1 multi-tube exchanger 1 coil exchanger The outer shells of the coil and multi-tube exchangers are in glass The outer shells of the single-tube exchanger are in stainless steel Instrumentation: pressure gauge, 1 float-type flow meter (cold circuit), 1 float-type flow meter (hot circuit), stainless steel valve for cold and hot water flow rate adjustment, 16 Pt100 temperature probes, circuit selection valve Hydraulic circuit in stainless steel, chassis in welded stainless steel 1 IP55 electrical cabinet with: emergency stop button, pump and electrical circuit protection, 4-position commutator for exchanger type selection, 2-position commutator for circulation mode selection (co- and counter-current), temperature display A technical manual with experiment examples
