FORCES IN A TRUSS (RESOLUTION)

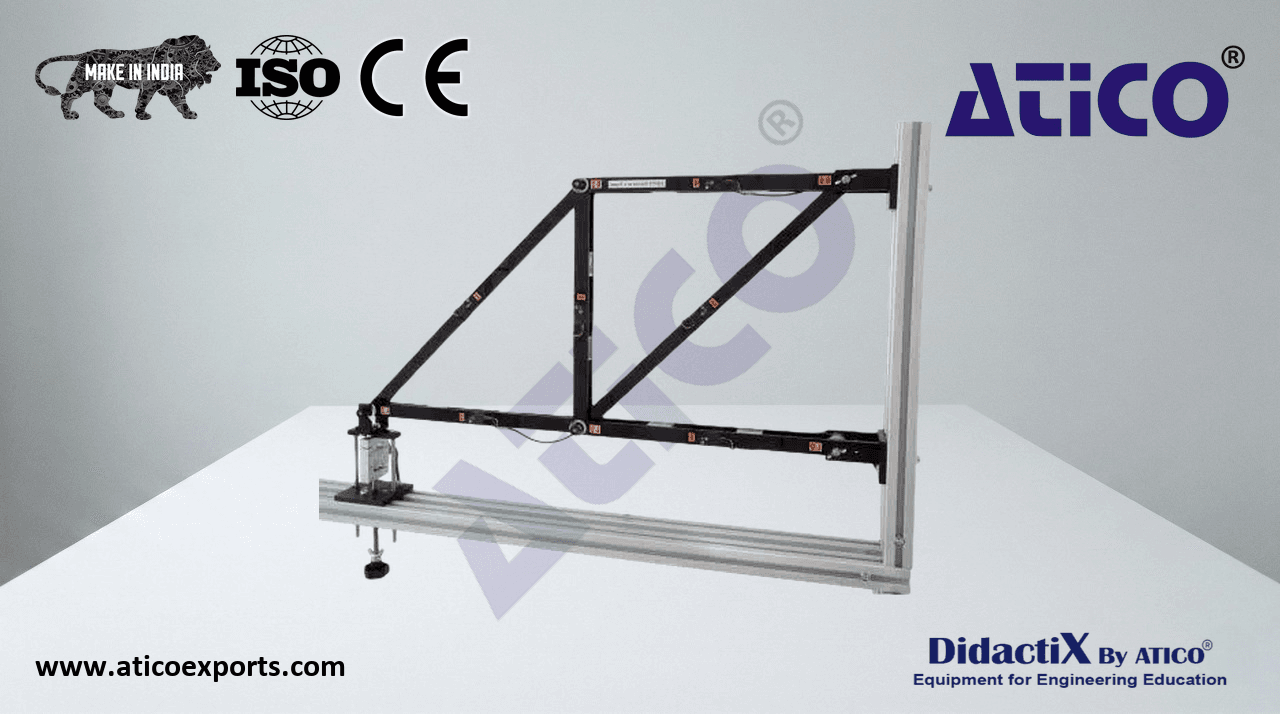

A two-bay, 45?? cantilevered truss is suspended from the inside vertical edge of a universal frame and stand (sold separately). A screwjack loading mechanism with integral load cell applies the truss loading. Each truss member is joined at its ends by true pin joints. Learn about FORCES IN A TRUSS (RESOLUTION) price for optimal educational outcomes.. The strain ??? and hence force ??? in each member is measured using strain gauge technology applied to each member. Outputs from the member strain gauges and load cell feed directly into a digital interface (sold separately). Learn about FORCES IN A TRUSS (RESOLUTION) for educational labs for optimal educational outcomes..

• Member centres: 400 mm (vertical and horizontal)
• Member section: 25 (H) × 10 (W) mm acrylic
• Loading Mechanism: 0–500 N
• Gauging type: Half bridge strain gauging
