Fluid Dynamics Study Bench

A fluid flowing in a pipe is subject to friction forces causing energy loss and therefore total pressure drop. This varies depending on obstacles encountered by the fluid. Learning Objectives: Visualisation of flow in pipes and deprimogenic devices. Learn about Fluid Dynamics Study Bench manufacturers for optimal educational outcomes.. Demonstration of laminar and turbulent flow regimes as a function of flow rate and pressure. Study of major pressure losses in: pipes of different diameters; smooth and rough pipes; ascending, descending, and inclined pipes. Learn about Fluid Dynamics Study Bench suppliers for optimal educational outcomes.. Study of minor pressure losses in: elbows of different radii; sudden pipe enlargements and reductions; different valves. Flow measurement using deprimogenic devices (Venturi, orifice plate). Learn about Flow Visualization Fluid Dynamics Study Bench for optimal educational outcomes.. Determination of valve Kv coefficients.

Major (distributed) losses due to pipe wall friction and minor (localised) losses caused by network singularities (elbows, valves, etc. ) are distinguished.

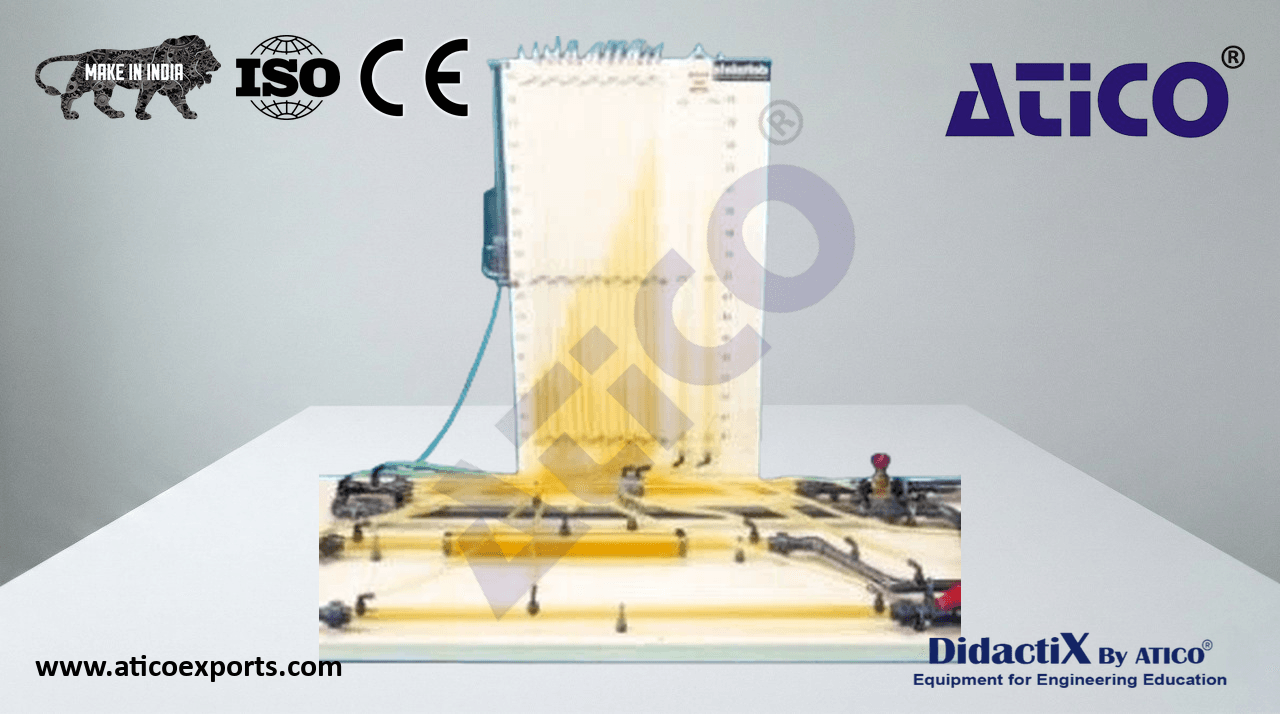

Stainless steel frame with tank with drain and single-phase stainless steel industrial centrifugal pump. One rotameter and one flow control valve. Two straight pipes, diameters 20 and 25 mm, length ≤ 1500 mm. Two straight pipes, diameter 15 mm, one smooth and one rough, length ≤ 1500 mm. One pipe section with variable inclination. Elbows at 45°, 90°, and 135°; bend at 90°. One sudden enlargement and reduction, DN15–DN25, in acrylic. One membrane valve, one ball valve, one globe valve. One stuffing-box valve. One acrylic orifice plate and one acrylic Venturi tube. One dye injection device. Pressure gauges and manometric panel with 22 piezometric tubes and back-pressure pump for static pressure measurements in pipes. One pump start/stop control and protection box. Bench supplied with technical and educational manual.
