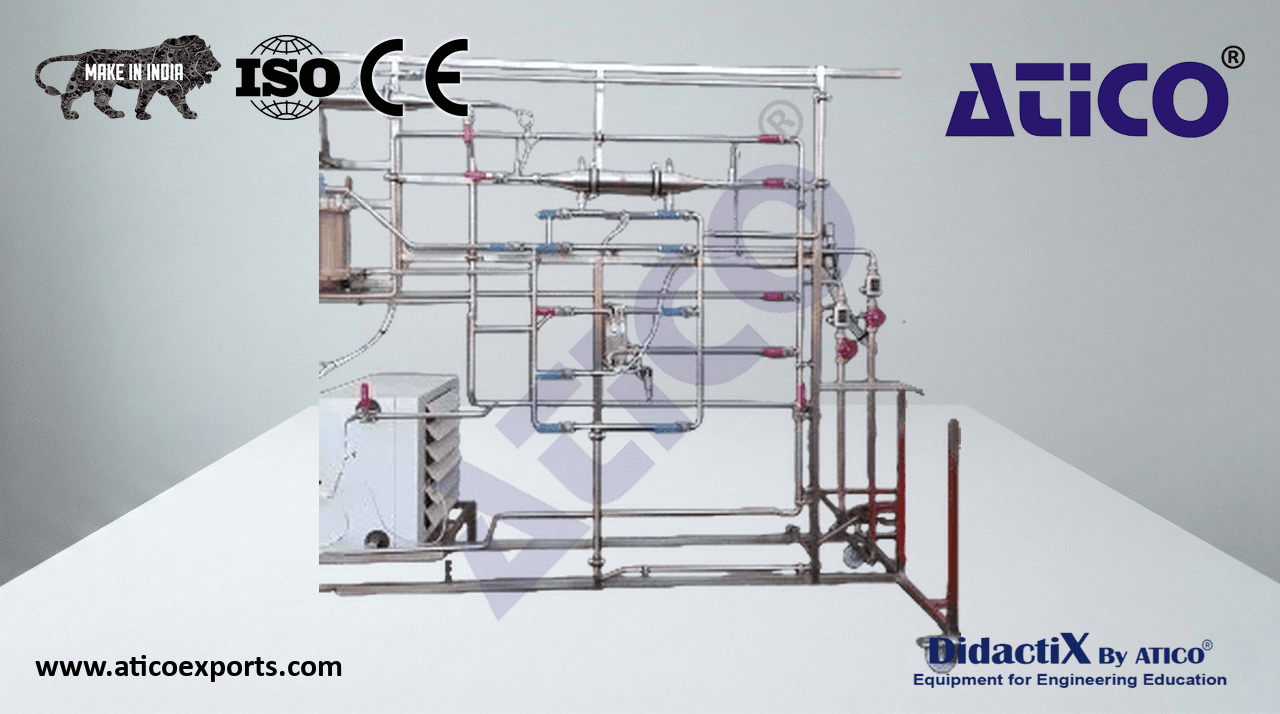

Five Heat Exchanger Study Bench

This pilot allows the study and comparison of 5 types of heat exchangers: plate, multi-tube, coaxial, finned, and double-jacket. It allows the study of co-current, counter-current, and parallel cross-flow exchangers. Educational Objectives: Determination of heat balances, global exchange coefficients, and flow regimes. Learn about Five Heat Exchanger Study Bench for educational labs for optimal educational outcomes.. Study of transfer modes (co- or counter-current). Influence of hot and cold fluid supply. Learn about Five Heat Exchanger Study Bench specifications for optimal educational outcomes.. Comparison of the efficiency of 5 types of exchangers. Establishment of temperature profiles and calculation of mean temperature differences. Learn about Five Heat Exchanger Study Bench India for optimal educational outcomes..

Composition:

• 1 brazed plate heat exchanger (exchange surface ~0. 12 m²)
• 1 multi-tube heat exchanger (exchange surface ~0.

1 brazed plate heat exchanger (exchange surface ~0.12 m²) 1 multi-tube heat exchanger (exchange surface ~0.12 m²): consisting of a tube bundle mounted inside a stainless steel shell 1 coaxial heat exchanger (exchange surface ~0.12 m²) 1 air heater 1 borosilicate glass double-jacket exchanger with stirring system All exchangers in stainless steel 304L 23 manual stainless steel valves for circuit selection 3 needle pressure gauges 2 float-type flow meters for cold (PVC) and hot (polysulfone) circuits 2 stainless steel globe valves for flow rate adjustment on cold and hot water circuits 18 Pt100 temperature probes Hydraulic circuit in stainless steel, mounted on welded stainless steel chassis with casters (two locking) IP66 control and command cabinet
