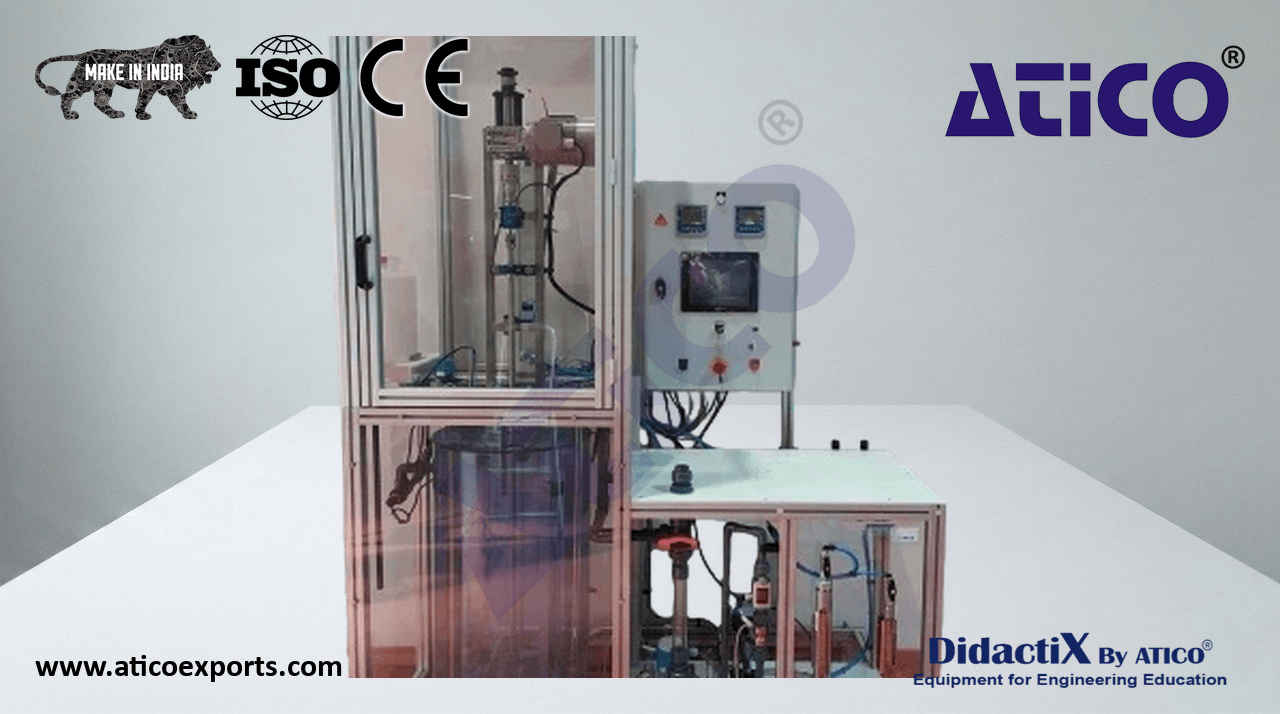

Experimental Agitation Study Unit

Agitate liquids of different viscosities while measuring torque (N·m) and rotational speed (rpm) of the impellers, in order to derive the power absorbed by the agitator and establish useful curves and studies.

1 transparent PVC tank, total capacity 140 litres – internal diameter 45 cm. Retractable lid with 2 nozzles.

1 transparent PVC tank; total capacity 140 litres – internal diameter 45 cm. 4 removable baffles with adjustable distance from the reactor wall, with wall-distance marking. Bottom drain valve. Continuous feed possible with overflow to drain. PVC water supply circuit. Telescopic guide column for agitation height adjustment. IP66 electrical cabinet comprising a 9.7″ touchscreen with machine synoptic displaying real-time parameters, real-time parameter curves, RS485/Ethernet communication gateway (local or remote mode), power-on buttons, and mushroom-head emergency stop button. Mounted on the frame.
