EFFECT AND JET FLOW

Allows students to investigate the Coand?? effect and a fluidic flip-flop (fluidics).

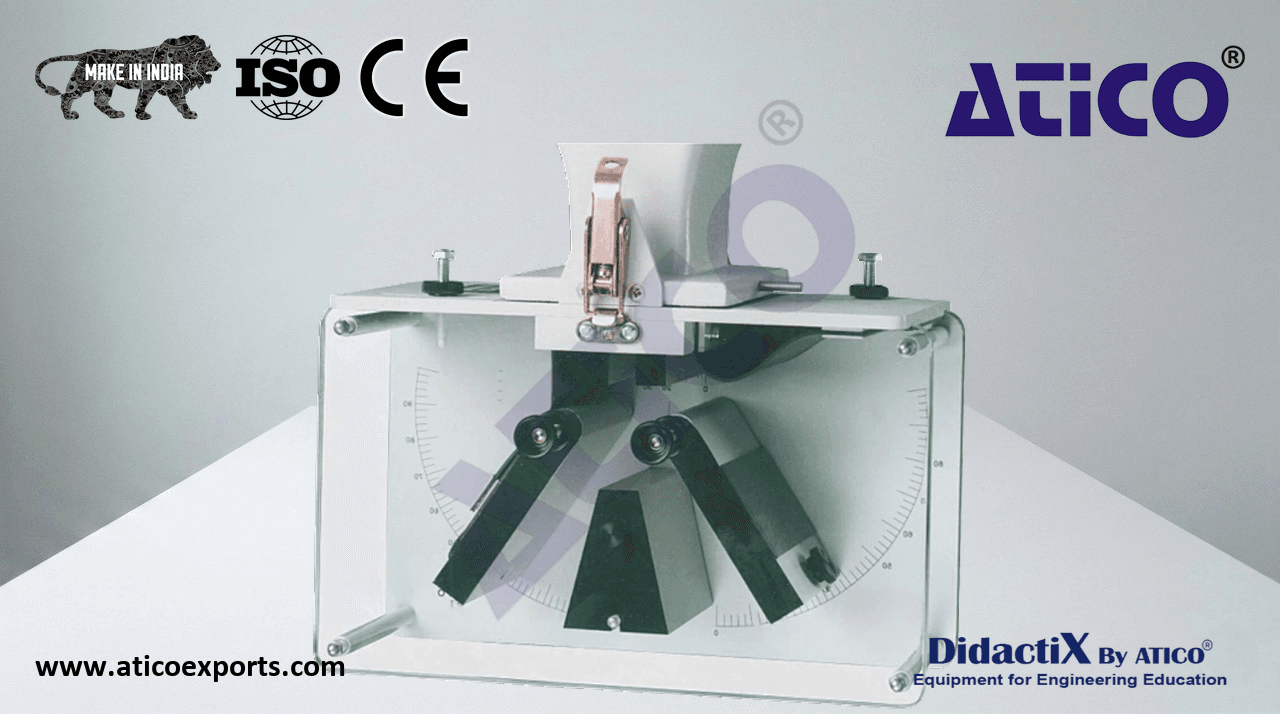

One of a series of eight experiment modules that fit to the Modular Air Flow Bench, this module consists of an aerodynamically shaped nozzle from which a jet of air emerges. This flows against a wall to which it attaches. The wall may be rotated to show the deflection of the jet through large angles due to the Coand?? effect. Learn about EFFECT AND JET FLOW exporters for optimal educational outcomes.. A second wall may be introduced at the other side of the jet, which may be switched from one side to the other, as is done in a fluidic flip-flop type switch. The effect of sealing the walls and adding a central splitter to the device are also investigated. Learn about EFFECT AND JET FLOW equipment for optimal educational outcomes..
