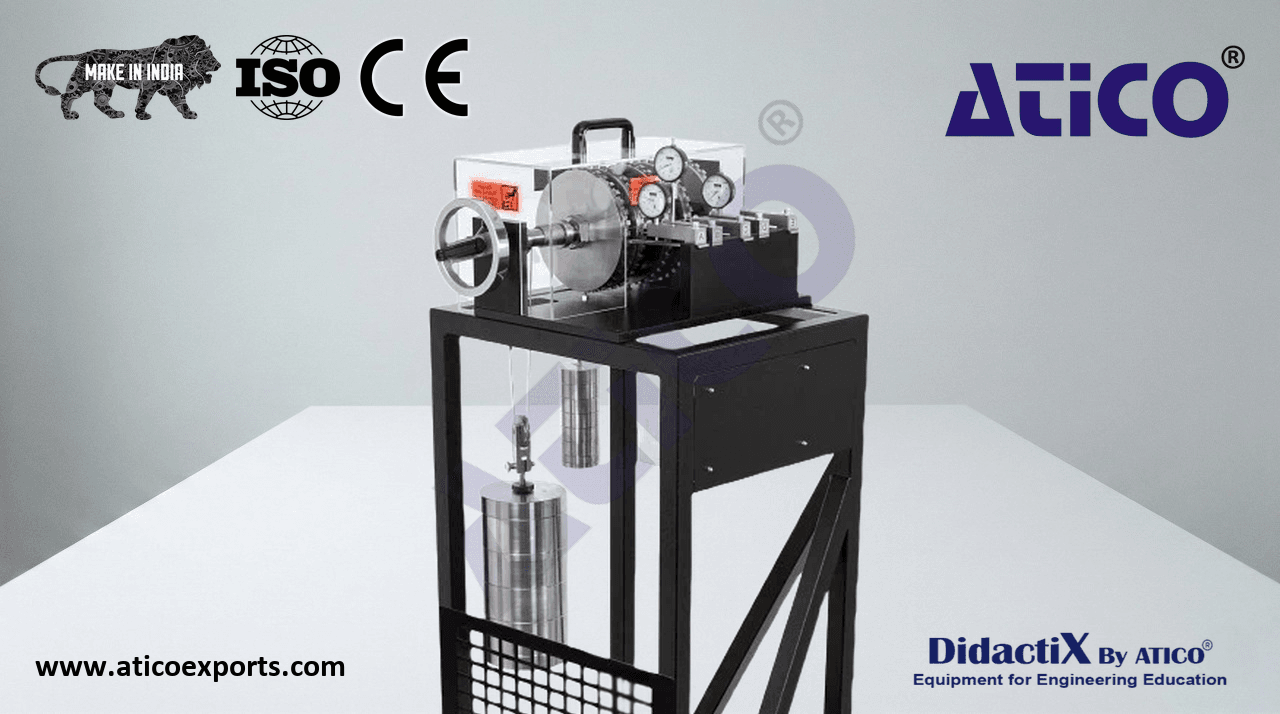

Dynamic behaviour of multistage planetary gears Deluxe

The planetary gear is a special type of gear drive, in which the multiple planet gears revolve around a centrally arranged sun gear. The planet gears are mounted on a planet carrier and engage positively in an internally toothed ring gear. Torque and power are distributed among several planet gears. Learn about Dynamic behaviour of multistage planetary gears specifications for optimal educational outcomes.. Sun gear, planet carrier and ring gear may either be driving, driven or fixed. Planetary gears are used in automotive construction and shipbuilding, as well as for stationary use in turbines and general mechanical engineering. Learn about Dynamic behaviour of multistage planetary gears manufacturers for optimal educational outcomes..

• investigation of the dynamic behaviour of a 2-stage planetary gear
• three planet gears per stage
• four different transmission ratios possible
• gear is accelerated via cable drum and variable set of weights
• weight raised by handwheel; ratchet prevents accidental release
• clamping roller freewheel enables free further rotation after the weight has been released
• shock absorber for weight
• safety devices: transparent protective cover with safety lock and protective grill for the set of weights
• force measurement on different gear stages via 3 bending bars, display via dial gauges
• inductive speed sensors
• software for data acquisition via USB under Windows 11
