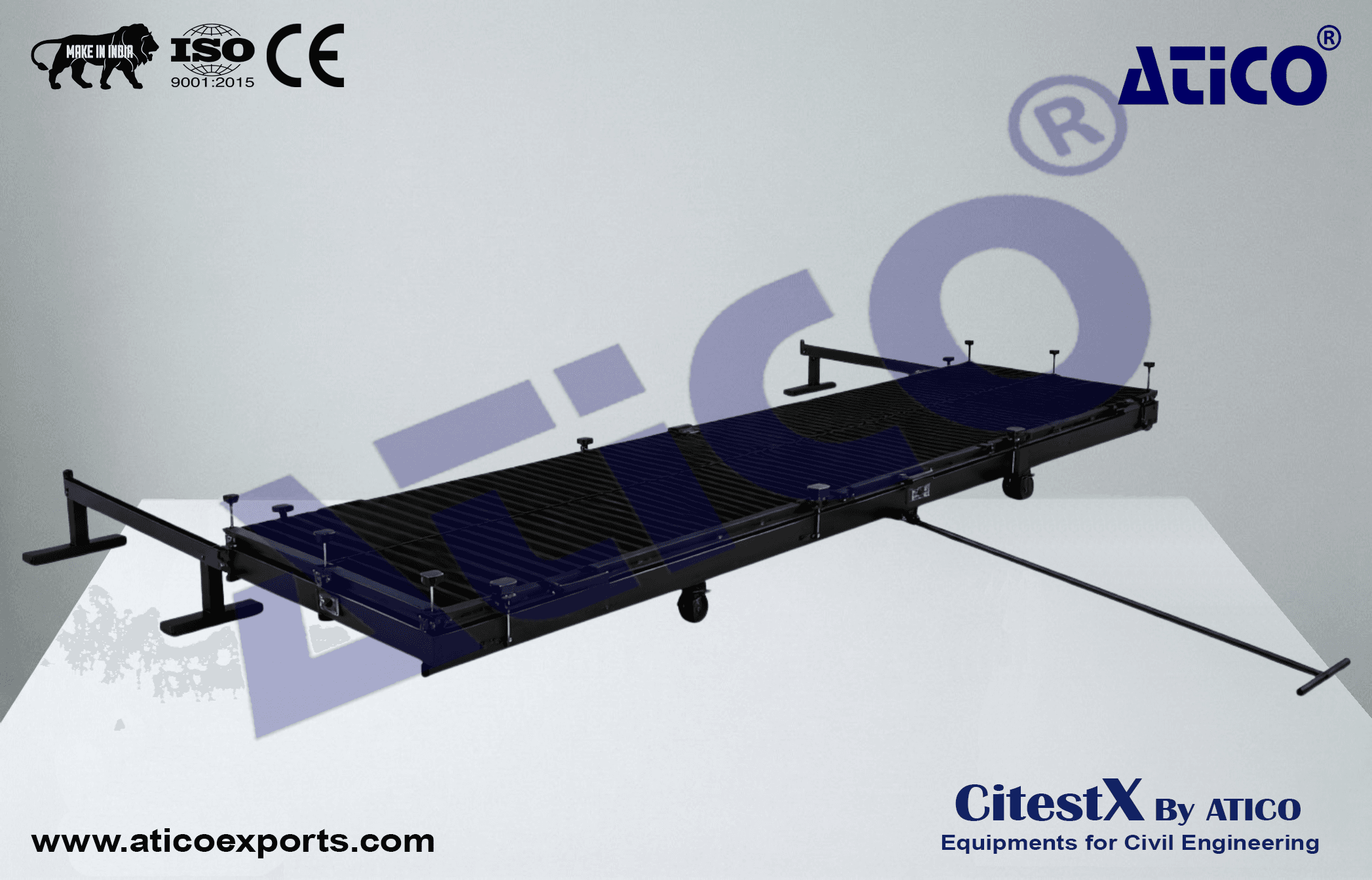

Depot Tray Test Set

Depot Tray Test Set is used to determine the transverse uniformity of distribution of sprayed binder to BS 1707.

STANDARDS COMPLIANCE :

• COMPLIED AS PER BS 1707

Components :

• Consisting of a wheeled trolley with a holding device for accepting a set of 50 containers. Containers are included.

Operation :

• The trolley and containers are pushed underneath the spray hood of the distributor, which is backed over a catch pit for the test. Once the containers are almost full, the trolley is withdrawn and the depth of binder in each container is measured, ensuring that the correct depth (not obscured by froth on the surface of the liquid) is obtained.

Results :

• Results are expressed as a percentage deviation from the mean for all the 50mm units over the effective width.

Dimensions :

• Height is 200mm without trays and 300mm with trays (including wheels).

Dimensions (cm) :

• 140x365x30

Weight (kg) :

• 440
