CROSS FLOW HEAT EXCHANGER

Bench top apparatus with a control and instrument unit for studies into the principles and performance of heat exchangers.

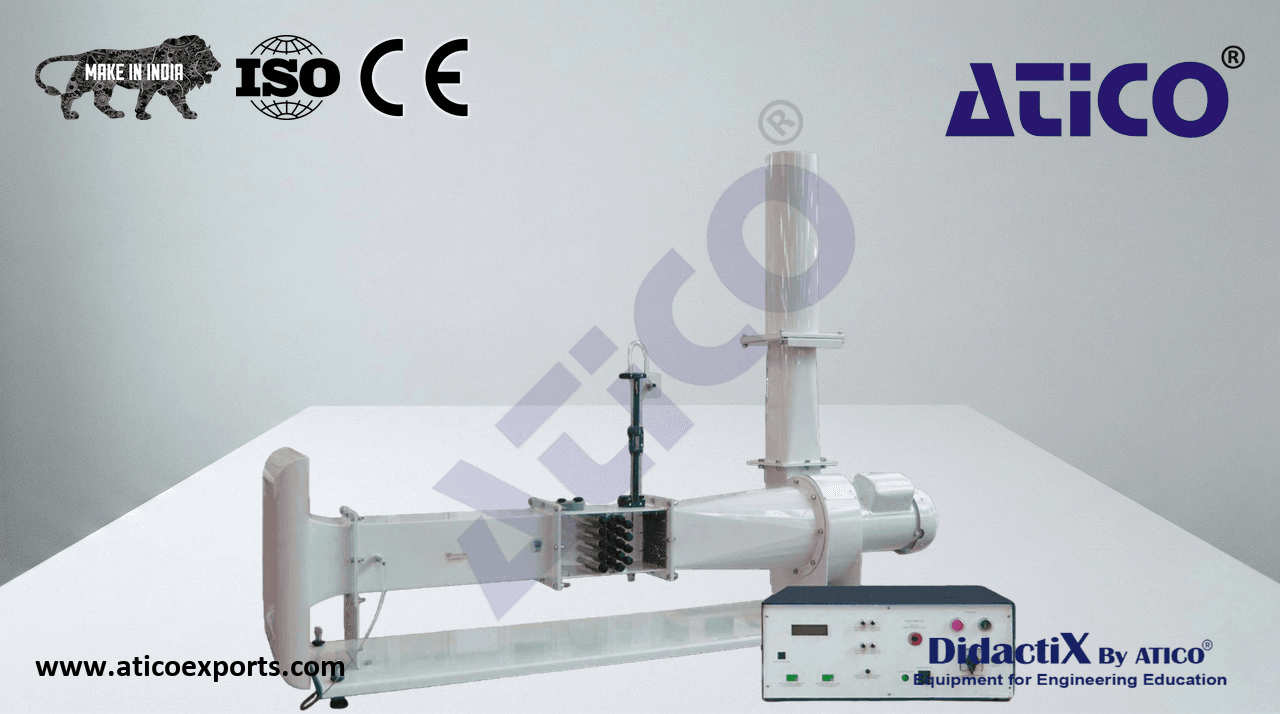

A vertically mounted rectangular section duct with an opaque plastic front cover is connected at its lower end to the intake of a powerful variable speed fan. At the upper end of the duct is a bell mouth air intake. Air is drawn by the fan into the duct and past the heat exchanger accessory before being discharged from the fan. Learn about CROSS FLOW HEAT EXCHANGER manufacturers for optimal educational outcomes.. A pair of manometers allows measurement of the pressure drop across the intake from which the air velocity in the duct may be determined. Situated at approximately mid height in the front of the duct is an opening into which any of the various heat exchanger accessories may be located. Learn about CROSS FLOW HEAT EXCHANGER suppliers for optimal educational outcomes.. Each optional heat exchanger accessory is serviced by an instrumentation and control console supplied as part of this unit. The console provides control and measurement of low voltage power to the optional accessories and allows measurement of all relevant heat exchanger and air stream temperatures. Learn about CROSS FLOW HEAT EXCHANGER equipment for optimal educational outcomes.. For operator safety, the console limits all accessories to approximately 100??C and contains electrical overload and earth leakage protection. The console also enables installation of the optional computerised data acquisition upgrade. Learn about CROSS FLOW HEAT EXCHANGER for educational labs for optimal educational outcomes..
