CONSERVATION of LINEAR MOMENTUM Deluxe

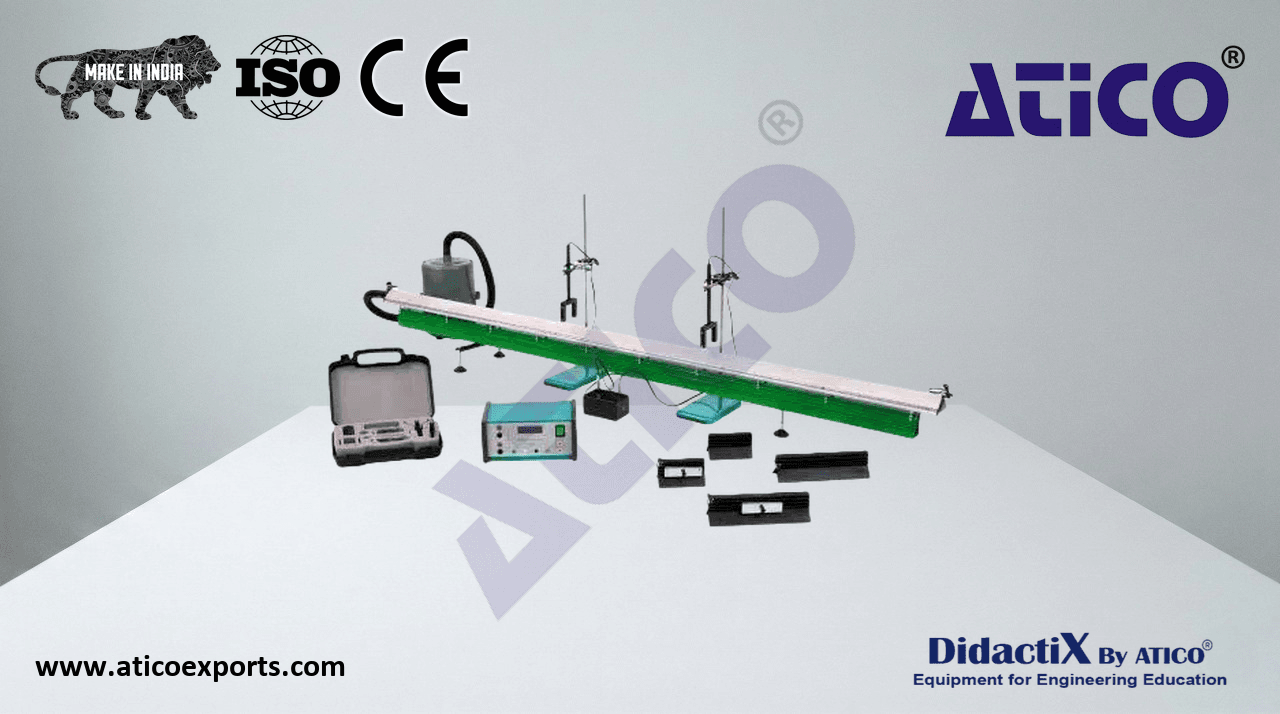

This apparatus consists of a 1. 45 metre long precision air track manufactured from sturdy lightweight extrusion. A blower forces air down through the extrusion and out through miniature holes running along its length, creating an air cushion onto which two trolleys can be moved. Learn about CONSERVATION of LINEAR MOMENTUM exporters for optimal educational outcomes.. This near-frictionless environment is crucial in preserving momentum as required by the conservation of linear momentum theory. The trolleys can be configured in different modes — one stationary whilst the other is moving, or both moving towards each other — allowing momentum before and after collision to be monitored. Learn about Precision CONSERVATION of LINEAR MOMENTUM for optimal educational outcomes.. The trolleys can accept additional masses to vary the experimental parameters and are projected along the track by means of a catapult device, with buffers installed to stop them if necessary. Light gates on the track monitor the timing of each trolley, and a linear scale allows the distance to be recorded and timing gate positions to be accurately set, enabling the velocity of each trolley to be calculated before and after collisions. Learn about CONSERVATION of LINEAR MOMENTUM suppliers for optimal educational outcomes..

• 2 x Trolley: 120mm long
• 2 x Timing gates
• Event timer range: 1ms to 999,999s
• Event timer: continuous or start/stop mode
• Track linear scale: 1mm resolution
• Air blower: flow controlled
