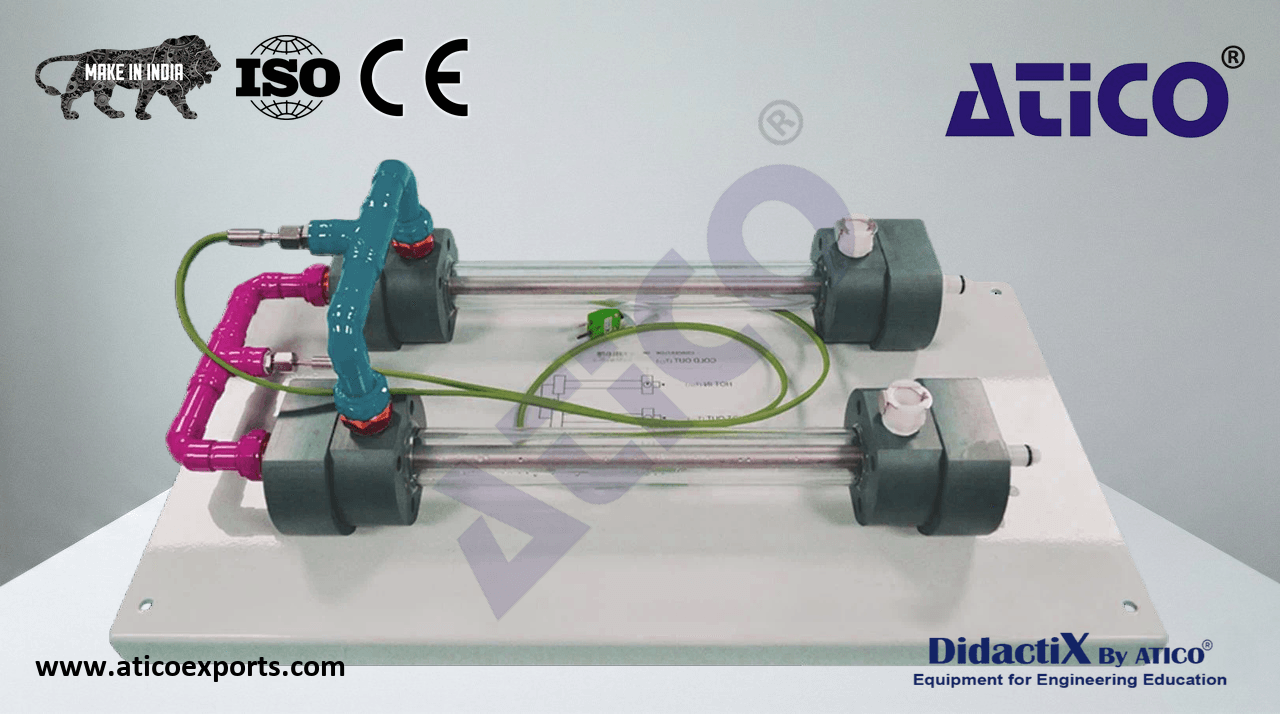

CONCENTRIC TUBE HEAT EXCHANGER

Shows how a simple concentric shell and tube heat exchanger works.

This is the simplest of the optional heat exchangers. It has two tubes, one inside the other. One tube carries hot fluid, the other carries cold fluid. Learn about CONCENTRIC TUBE HEAT EXCHANGER exporters for optimal educational outcomes.. Heat transfers between them. The heat exchanger is in two equal parts joined by intermediate pipes. Learn about CONCENTRIC TUBE HEAT EXCHANGER for educational labs for optimal educational outcomes.. This allows two extra measurement points at the midpoint (plus the standard four points at the connectors). This gives more useful experiment results, to show more clearly how the fluid temperatures change during heat transfer. Learn about CONCENTRIC TUBE HEAT EXCHANGER price for optimal educational outcomes.. The Heat Exchanger Service Module provides hot and cold water to the heat exchanger and all the instruments needed to measure its performance. All fluid connections to the heat exchanger are self-sealing quick connectors - for safety and simplicity. Learn about CONCENTRIC TUBE HEAT EXCHANGER suppliers for optimal educational outcomes.. The hot and cold fluid streams have different connectors to reduce errors. Connecting the heat exchanger takes less than one minute. Learn about CONCENTRIC TUBE HEAT EXCHANGER equipment for optimal educational outcomes.. The heat exchanger is on a bedplate that has a clear schematic diagram showing the connections.

• Panel: Aluminium
• Heat Exchanger: Concentric tube type; area 0.0288m²
• Water Heater: 3kW with electronic control
• Pump: Continuous rated to circulate hot water
• Flow Meters (x2): for hot and cold water
• Digital Thermometer: 0.1°C resolution with multi-way selector switch
• Cold water flow reversal valves: to establish concurrent and counter-current flow
