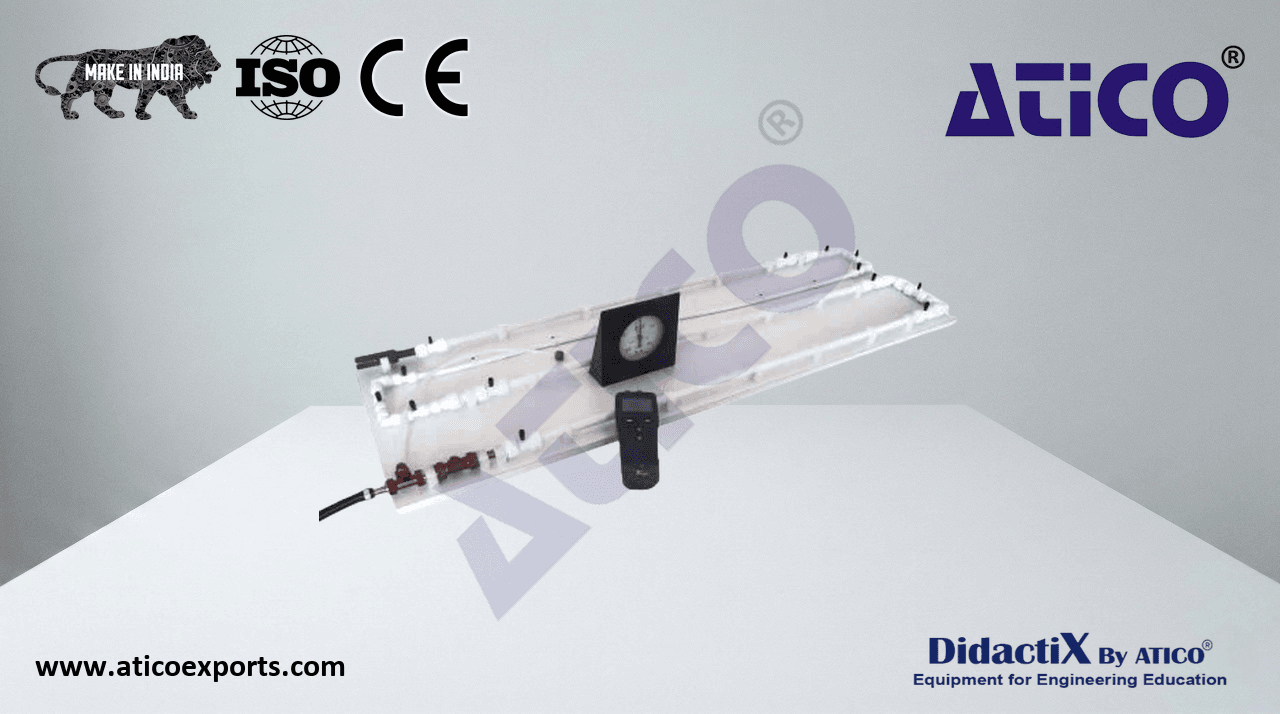

COMPRESSIBLE FLOW, PIPE FRICTION MODULE

A series of four straight tubes of different diameters with end pressure tapings allow pressure losses in a straight pipe to be investigated at a range of Reynolds numbers. Bends, sudden enlargements and contractions are included to allow investigation of pressure loss and recovery. The unit is driven by an ejector (jet pump) allowing investigation of entrainment ratio and ejector performance. Learn about COMPRESSIBLE FLOW, PIPE FRICTION MODULE suppliers for optimal educational outcomes.. The pressures, temperatures and air flow rate are recorded by a combination of instrumentation on the base unit and the optional module. A digital hand held manometer is supplied. Learn about COMPRESSIBLE FLOW, PIPE FRICTION MODULE price for optimal educational outcomes..

• 13 x pressure tappings
• Small Tube Bore Diameter: Ø6.8mm
• Large Tube Bore Diameter: Ø11mm
• Base Board: 1200mm long x 380mm wide
• 4 x straight tubes
• 6 x bends
• 2 x reducers
