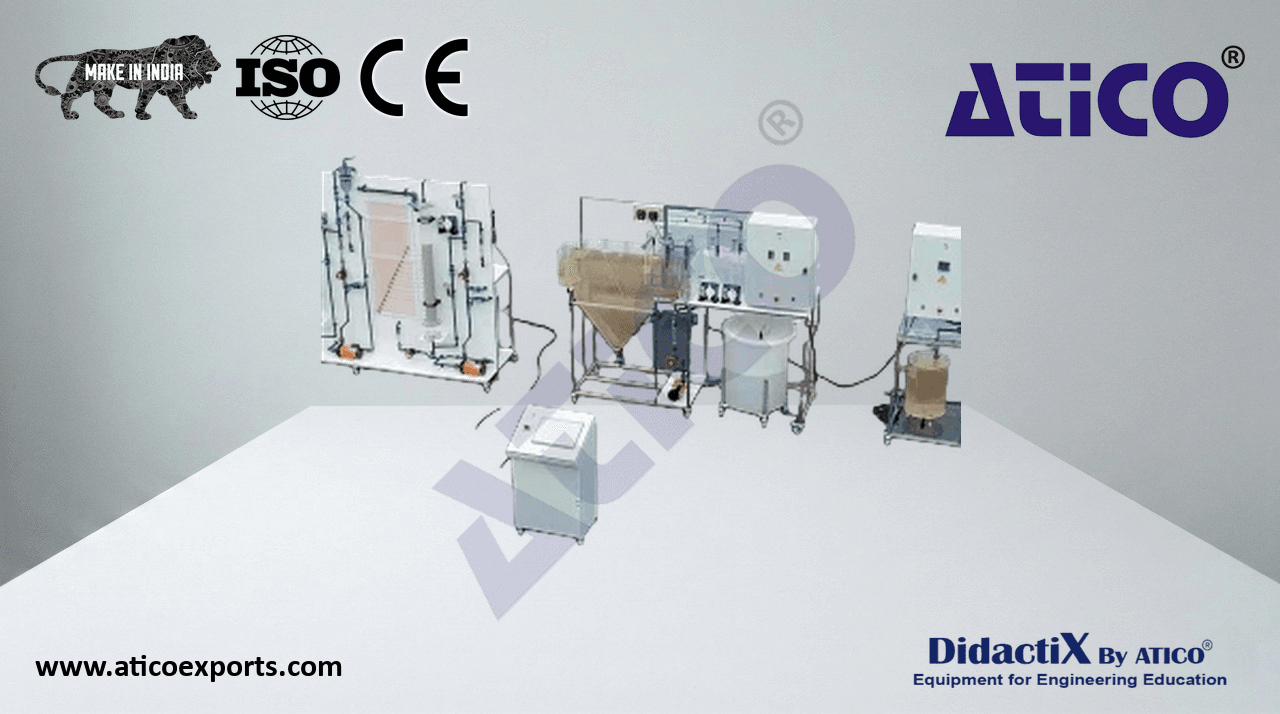

Complete Water Treatment and Potabilization Line

A complete treatment line for wastewater and effluents before discharge into the environment, and for potabilization of effluents or water taken from the environment. The complete line is controlled by a Wi-Fi connected panel. Data can be downloaded via a USB key in Excel format. Learn about Complete Water Treatment and Potabilization Line price for optimal educational outcomes..

Activated Sludge Treatment Unit (MP43):

• Feed tank with lid, on casters
• Aeration basin with two overflow levels and lid
• Variable-speed stirrer with display
• Aeration assembly with ceramic air diffuser, air compressor and flow meter
• Variable-flow peristaltic feed pump on sequencer, with flow meter
• Conical-bottom decantation basin
• Dissolved oxygen measurement probe and transmitter
• Threshold aeration regulation controlled by dissolved oxygen measurement
• Combined pH/Redox measurement probe and transmitter
• Control cabinet grouping on/off commands for pump, compressor, and stirrer; oxygen sensor transmitter and pH/Redox transmitter
• PVC connections, mounted on stainless steel chassis with aluminum clamping nuts

Coagulation-Flocculation-Decantation Unit (MP50): Coagulation eliminates electric charges on colloids to form larger particles that can sediment by flocculation. The elimination is achieved in the subsequent solid-liquid separation step: decantation.

Feed tank with lid, on casters Aeration basin with two overflow levels and lid Variable-speed stirrer Aeration assembly with diffuser, air compressor and flow meter Variable-flow peristaltic pump for substrate feed on sequencer and its flow meter Dissolved oxygen measurement probe and transmitter Threshold aeration regulation controlled by dissolved oxygen measurement Combined pH/Redox measurement probe and transmitter Conical-bottom decantation basin Control cabinet with on/off commands for pump, compressor, and stirrer; oxygen sensor transmitter and pH/Redox transmitter; PVC connections on stainless steel chassis Flocculant feed tank Coagulant feed tank Two-stage coagulation-flocculation basin in transparent PVC Lamellar settling basin in transparent PVC with inclinable and retractable baffles Feed and synthetic solution preparation tank 2 variable-speed stirrers Two reagent addition pumps Circulator for stirring and feeding the product to be treated 3 float-type flow meters (flocculant, coagulant, feed) Electrical cabinet for pump control with protection, stirrer command, reagent feed timers, and sedimentation recycling; includes PLC connected to the general Wi-Fi control system Two tanks (feed tank and intermediate tank before activated carbon filter) Disinfection station: chlorine storage tank, chlorine adjustment tank, chlorine dosing pump, chlorine measurement circuit pump, stirrer, continuous chlorine measurement probe with transmitter (4-20 mA output and 2 relay outputs) Transparent acrylic column (sand filter) Battery of piezometric tubes for pressure drop measurement on graduated panel Transparent acrylic column (activated carbon filter) Pressure gauge Centrifugal feed pump for sand filter Centrifugal feed pump for activated carbon filter Two flow meters Two low-level safety devices for pumps (high-level safety ensured by overflows) Stainless steel chassis with PVC piping; safety relay and pump protection in control cabinet
