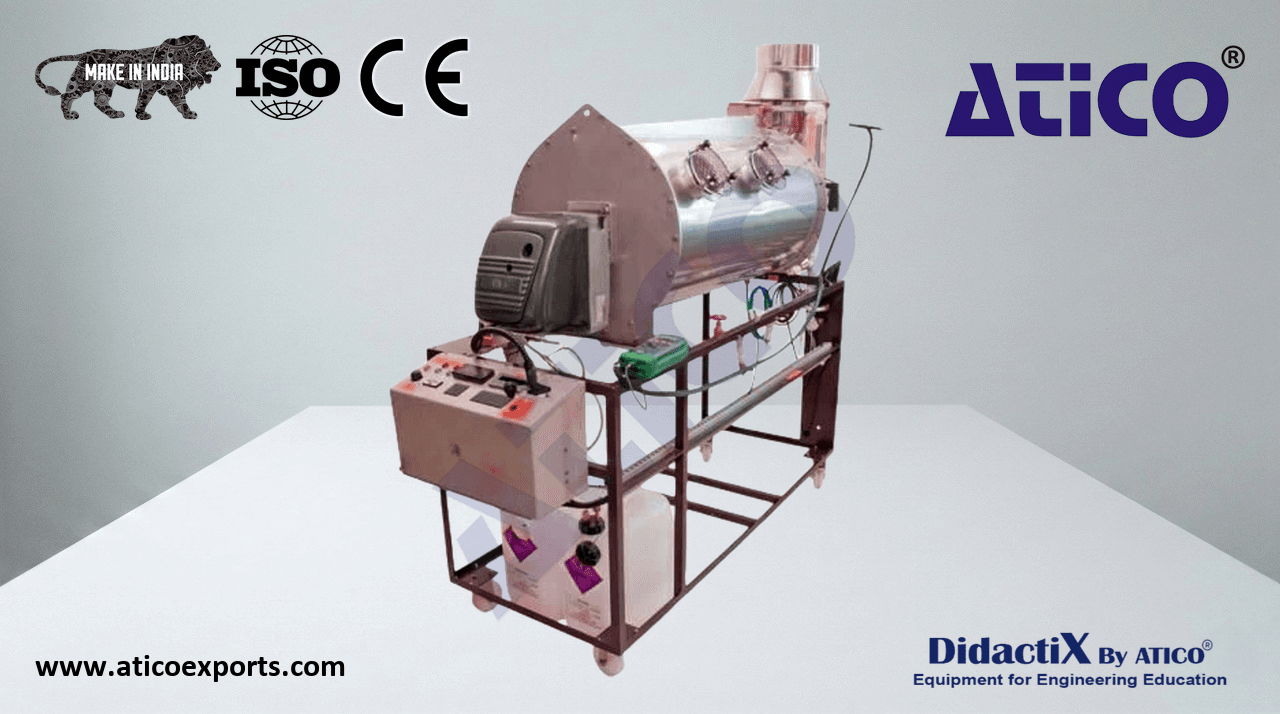

COMBUSTION LABORATORY UNIT - GAS AND OIL BURNER SUPPLIED

This Combustion Laboratory Unit enables students to study many aspects of combustion and burner operation using burners typical of those used commercially. A gas burner is fitted as standard, and an oil burner is supplied with the unit also. The unit is frame mounted, is fully instrumented and requires only a conventional single phase electrical supply, cooling water and the chosen fuel. Learn about COMBUSTION LABORATORY UNIT - GAS AND OIL BURNER SUPPLIED combustion India for optimal educational outcomes..

• Frame: Powder coated 25mm mild steel angle frame with 16 swg shelves.
• Chamber: Stainless steel combustion chamber, approximately Ø450mm ID, Ø500mm OD x 1000mm long, with four 100mm quartz glass windows.
• Chamber and end plate water cooled, front plate has 80mm thick insulation and burner mounting studs.
• Gas Burner: Package burner with integral fan and control box, and multibloc valve. Operates on natural gas (methane) or LPG gases at heat rates up to 100kW approx. (depending on fuel).
• Oil Burner: Package burner with integral fan and control box. Pressure jet atomisation. Two interchangeable nozzles of 1.5 and 2.2 US gall/hr (5.1 & 7.57 L/hour) working at 8 to 15 Bar (116 to 200 psi) with 60° spray angle, giving heat rates up to 108kW approx. (depending on fuel).
• NOTE: Maximum pressure on Kerosene is 10 Bar.
