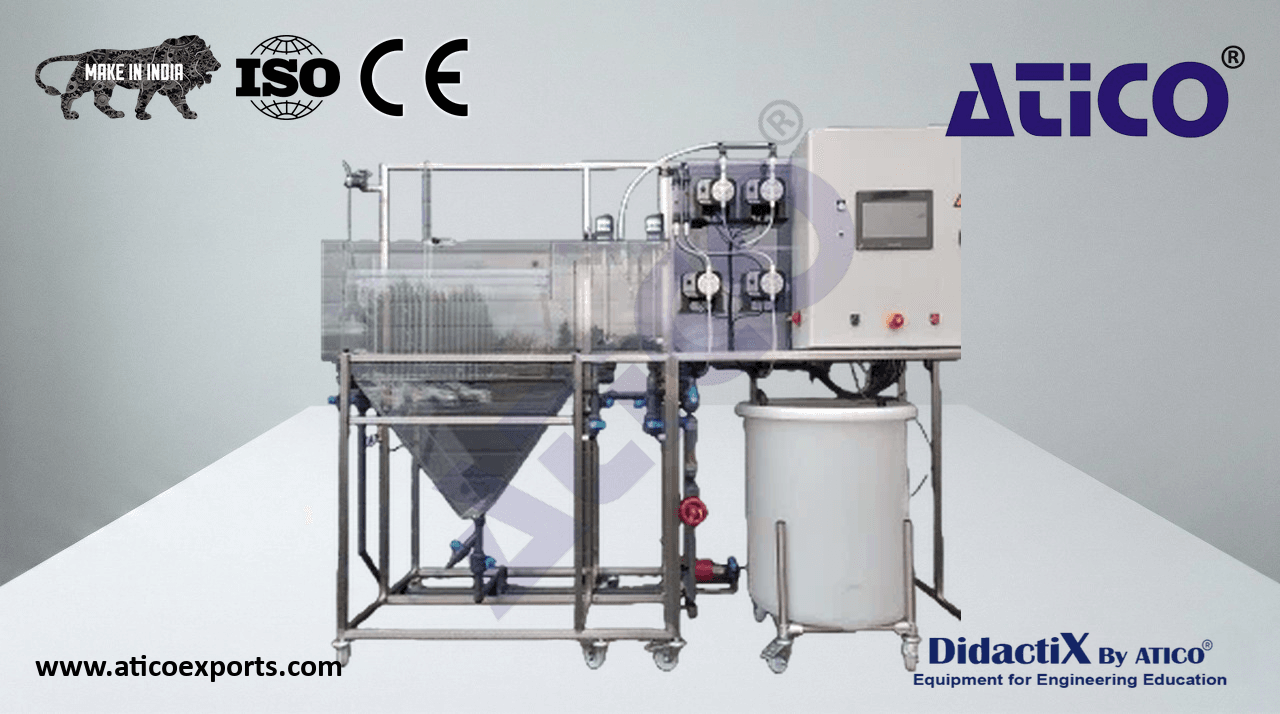

Coagulation Flocculation Decantation Pilot

This pilot allows addressing the elementary processes of physico-chemical engineering in water treatment. Coagulation and flocculation processes facilitate the elimination of suspended and colloidal matter.

Coagulation eliminates electric charges on colloids to form larger particles that can sediment by flocculation. Elimination is achieved in the subsequent solid-liquid separation step: decantation.

Flocculant feed tank Coagulant feed tank Two-stage coagulation-flocculation basin in transparent PVC Lamellar settling basin in transparent PVC with inclinable and retractable baffles Feed and synthetic solution preparation tank 2 variable-speed stirrers Two reagent addition pumps Circulator for agitation and feeding the product to be treated 3 float-type flow meters (flocculant, coagulant, feed) Electrical cabinet for pump control with protection, stirrer command, reagent feed and sedimentation recycling timers
