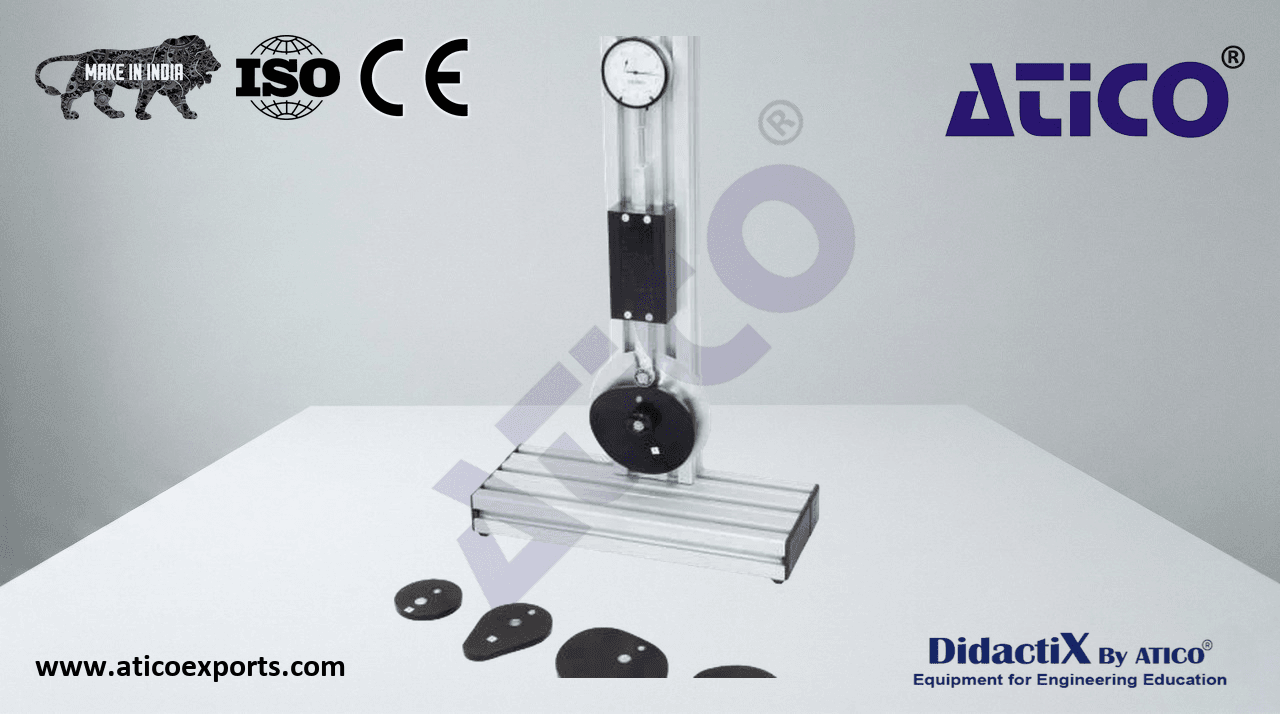

CAM AND FOLLOWER APPARATUS
Category: Mechanical Engineering Lab Equipments
Need Help?
+91 98967 93832Applications
Apparatus for investigating the motion characteristics of different cam profiles and their effect on follower displacement, enabling comparison of theoretical and experimental follower motion diagrams.
Technical Specifications
- Simple Harmonic Motion Cam: Rise/fall 24 mm
- Tangent Cam: Large radius 32 mm, small radius 15 mm
- Eccentric Cam: 10 mm eccentricity
- Roller follower: Ø19 mm
- Dial gauge: 25 mm range, 0.01 mm resolution
- Protractor scale: 360° range, 1° resolution
