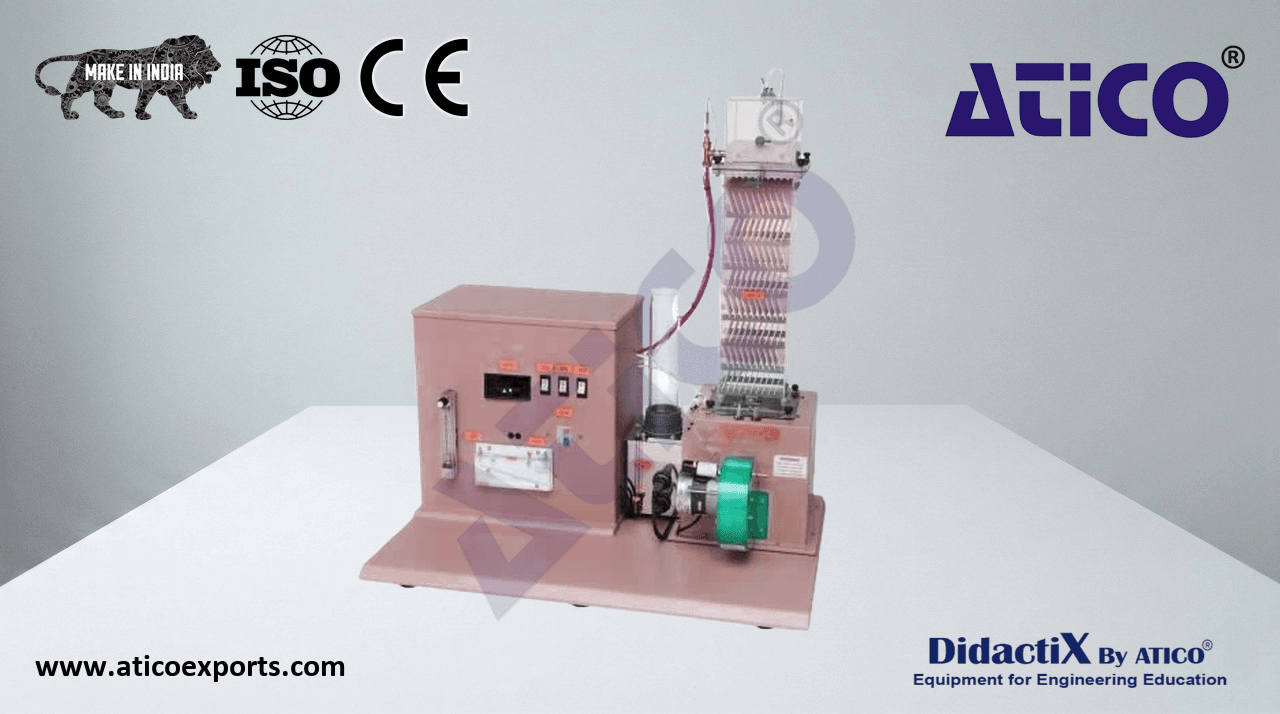

BENCH TOP COOLING TOWER

This bench top cooling tower has been designed to meet the demand for a compact unit which clearly demonstrates all the processes found in a full size forced draught cooling tower and behaves in a representative manner.

• Column Dimension: 150(L) x 150(W) x 600(H) mm
• Number of Decks: 8
• Number of plates per deck: 10
• Surface area of packing: 1.19m²
• Constructed in impact resistant plastic
• Load tank with 0.5kW and 1.0kW heaters
• Float level control
• Make-up tank
• Bronze circulating pump
• Air fan
• Electrical control panel with digital temperature indicator
• Column B packing density: 110m² per m³
