Batch Distillation Unit

Distillation enables the separation of a mixture of compounds with different boiling points. Boiling the mixture, initially charged to the reboiler, produces vapours of different composition to the liquid. Repeated condensation and re-evaporation progressively enriches the vapour phase in the most volatile product. Learn about Batch Distillation Unit manufacturers for optimal educational outcomes.. Learning Objectives: Study of column hydrodynamics. Influence of operating conditions on solution separation. Learn about Batch Distillation Unit India for optimal educational outcomes.. Calculations: Heat balance. Mass balance. Learn about Digital Batch Distillation Unit for optimal educational outcomes.. Determination of the number of theoretical plates (McCabe & Thiele, Ponchon & Savarit). Determination of the number of transfer units. Learn about Batch Distillation Unit price for optimal educational outcomes..

The column packing multiplies the contact surface area and thus mass transfer. Vapours are condensed and then split between the distillate and the reflux via a valve-head column.

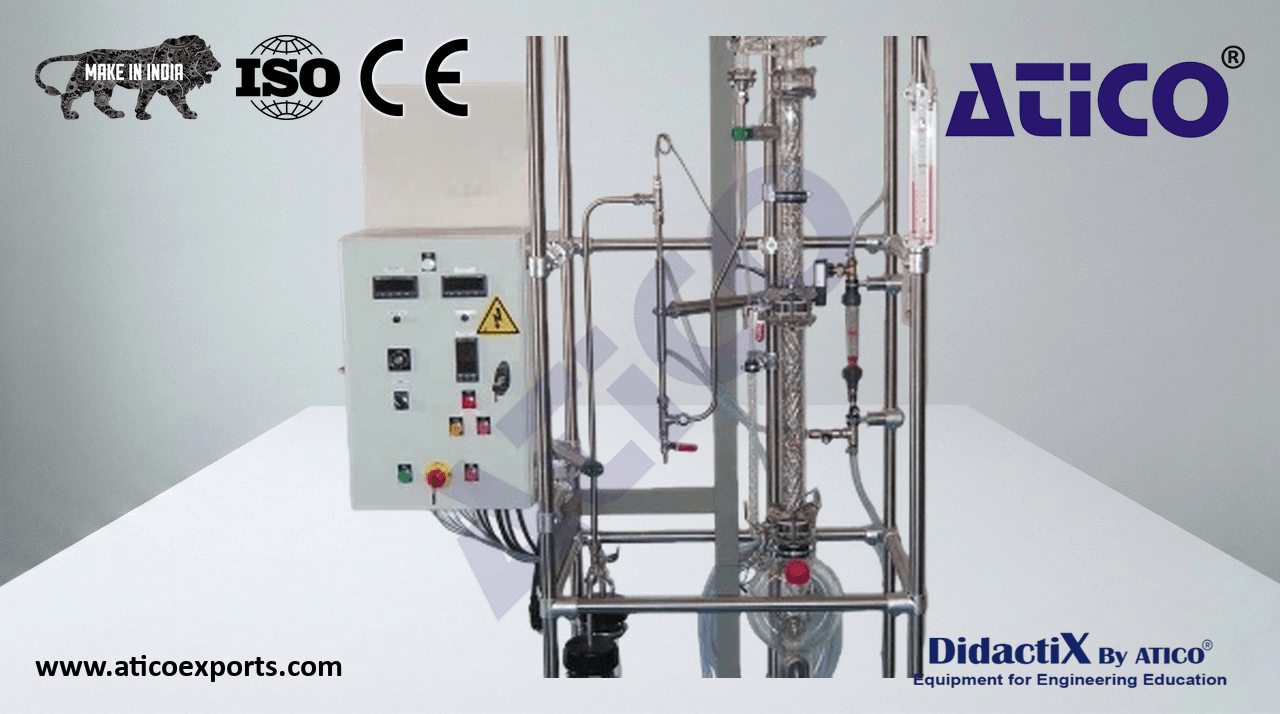

Borosilicate glass reboiler with electric heating, minimum level safety, and maximum temperature safety. Cooler for differential pressure measurement. Borosilicate glass column in two sections with 316L stainless steel packing. Two 316L stainless steel redistribution plates, each fitted with a sampling valve and temperature port. Borosilicate glass column head with temperature port, fitted with a timer valve to control the reflux ratio. Vertical 316L stainless steel condenser. 316L stainless steel distillate cooler. Two borosilicate glass distillate receivers. Two polyethylene distillate collection tanks. 316L stainless steel interconnecting pipework. Support frame in 304L stainless steel tubing with aluminium fittings. Condenser cooling water supply with rotameter, flow control valve, and water circulation monitor to stop heating on coolant failure. Column pressure drop measurement via U-tube differential manometer. IP55 control and instrumentation cabinet with emergency stop, start/stop buttons, electronic timer controlling the column head valve, reboiler heating controller, and two digital temperature indicators for 7 Pt100 Ω probes, one communicating.
