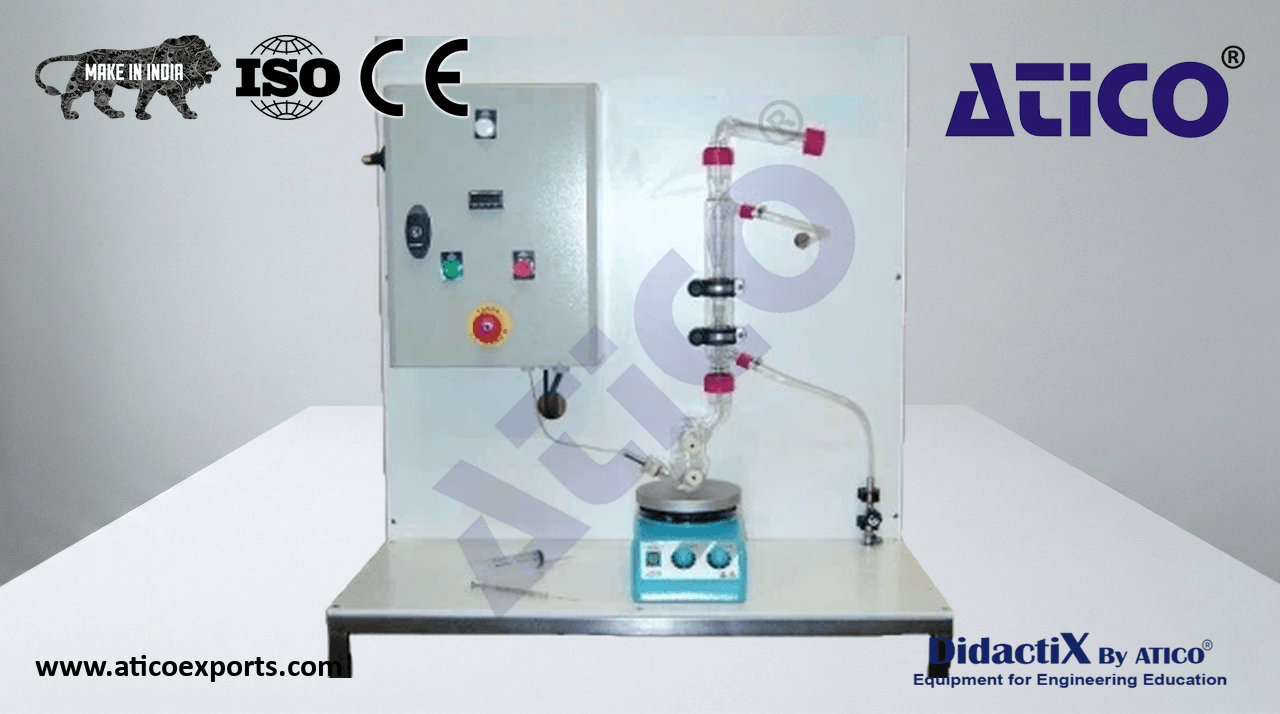

Atmospheric Dynamic Ebulliometry Unit

A liquid (X) brought to the boil in a micro-boiler produces vapour (Y) in equilibrium. A total condenser returns this vapour, condensed and hot, to the boiler under atmospheric pressure: equilibrium is perfect. Learning Objectives: Determination of equilibrium curves for a binary mixture at atmospheric pressure. Learn about Atmospheric Dynamic Ebulliometry Unit specifications for optimal educational outcomes..

The ebulliometer is equivalent to a perfect single theoretical plate; it maintains liquid–vapour equilibrium and allows sampling of the equilibrium phases using gas-tight micro-syringes. Equipment: Borosilicate glass ebulliometer cell.

Borosilicate glass ebulliometer cell. Borosilicate glass total condenser. Magnetic heating stirrer with variable heating power and variable stirring speed. Cold water supply. Cooling pipework. PVC plate. Support frame in 304L stainless steel tubing with aluminium fittings. Set of sampling and loading syringes. IP55 control and instrumentation cabinet with emergency stop, start/stop buttons, and one digital temperature indicator with one Pt100 Ω probe.
