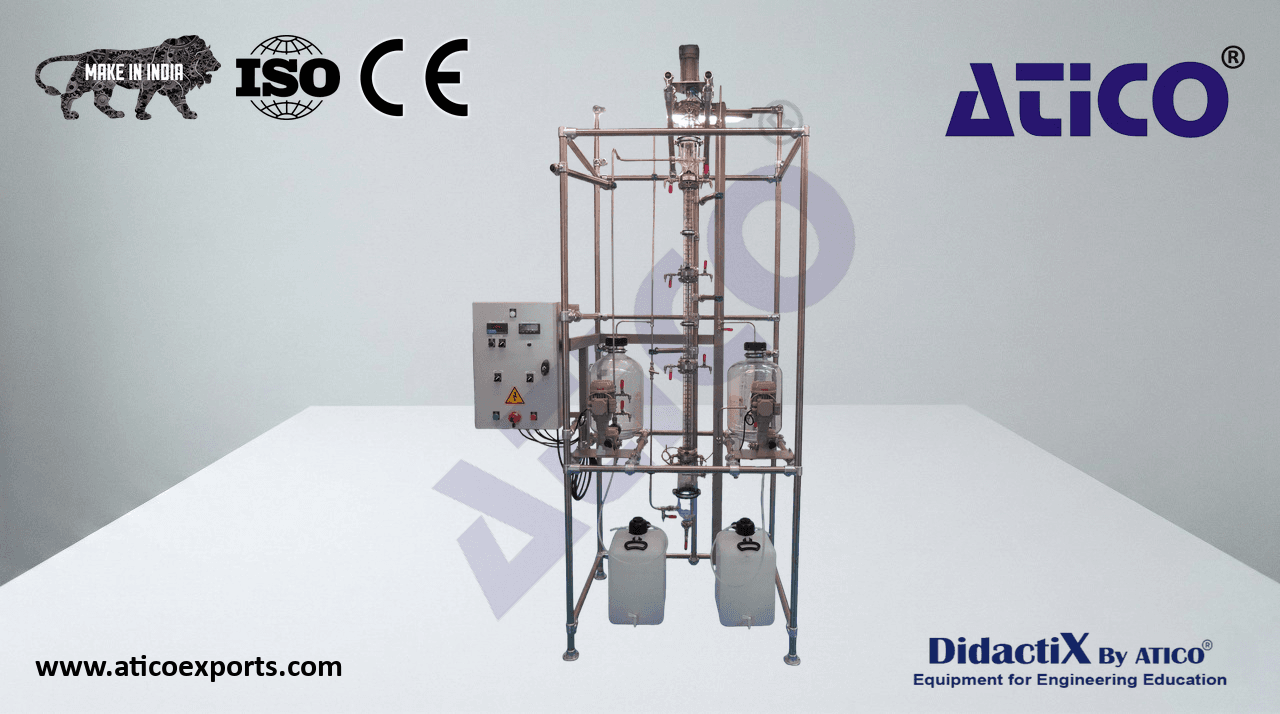

Agitated Liquid–Liquid Extraction Column

Liquid–liquid extraction transfers a solute (dissolved in a diluent to form the feed solution) into a solvent with which it has greater affinity; the diluent and solvent are immiscible. Learning Objectives: Influence of solution and solvent flow rates. Influence of agitation. Learn about Agitated Liquid–Liquid Extraction Column exporters for optimal educational outcomes.. Mass balance. Number of theoretical stages (McCabe & Thiele, ternary diagrams). Learn about Agitated Liquid–Liquid Extraction Column India for optimal educational outcomes.. Number of transfer units. Mass transfer coefficients. Learn about Digital Agitated Liquid–Liquid Extraction Column for optimal educational outcomes..

The light phase is introduced at the column base and rises towards the upper settler. The heavy phase, introduced at the column head, descends towards the settling zone at the base.

Two polyethylene feed solution and solvent storage tanks. Solution metering pump. Solvent metering pump. Borosilicate glass lower settler with light-phase inlet, heavy-phase outlet, and sampling valve. Borosilicate glass upper settler with heavy-phase inlet, light-phase overflow outlet, and sampling valve. Borosilicate glass column. Variable-speed 316L stainless steel turbine agitation assembly driven by an electric motor. Four 316L stainless steel guide and sampling plates. Borosilicate glass extract phase receiver. Borosilicate glass raffinate phase receiver. 316L stainless steel interconnecting pipework. Support frame in 304L stainless steel tubing with aluminium fittings. IP55 control and instrumentation cabinet with emergency stop, start/stop buttons, agitation speed variator, and digital agitation speed indicator.
