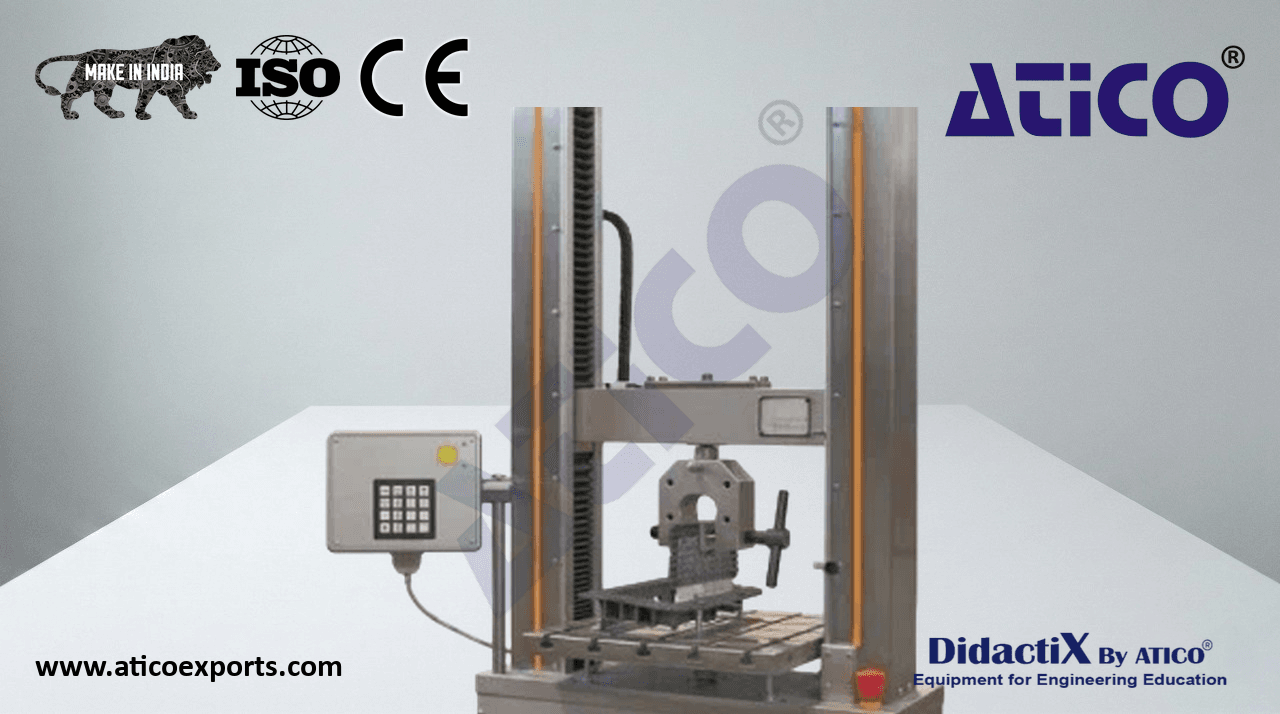

10 kN Testing Machine

Static testing machine for tension, compression and bending tests. Pedagogical Objectives: Autonomous operation without software. Speed servo-control, adjustable from 1 mm/min to 600 mm/min. Learn about 10 kN Testing Machine manufacturers for optimal educational outcomes.. Acquisition frequency: 50 Hz. Force sampling resolution: 16 bits. Learn about 10 kN Testing Machine India for optimal educational outcomes.. Crosshead positioning resolution: 0. 01 mm. Learn about Benchtop 10 kN Testing Machine for optimal educational outcomes.. USB connection to PC with software control.

Technical Description:

Chassis:

• Twin-column, dual ball-screw type
• Benchtop on 4 anti-vibration mounts
• Structure in stainless steel and brushed aluminium
• Capacity: 10 kN
• Travel: 700 mm or 1,200 mm
• Chamber width: 400 mm, 600 mm or 800 mm

Force measurement: Supplied with one load cell (choice from 5 N to 10 kN):

• S-type bridge load cells
• Usable in tension and compression
• Class 0. 5 from 1 to 100% of measuring range
• Multiple cells of different capacities can be connected
• Standard pin interface: male Ø16 mm + Ø8 mm pin for quick attachment of new fixtures

Options:

• Option 1: 1,200 mm travel (instead of 700 mm)
• Option 2: 600 mm chamber
• Option 3: 800 mm chamber
• Option 4: USB acquisition card for potentiometric sensor or clip-on extensometer
• Option 5: Control software
• Option 6: Full control PC (Intel i5, 8 GB DDR, 500 GB SSD), screen, keyboard, mouse; fully configured with Windows and Excel licences.
